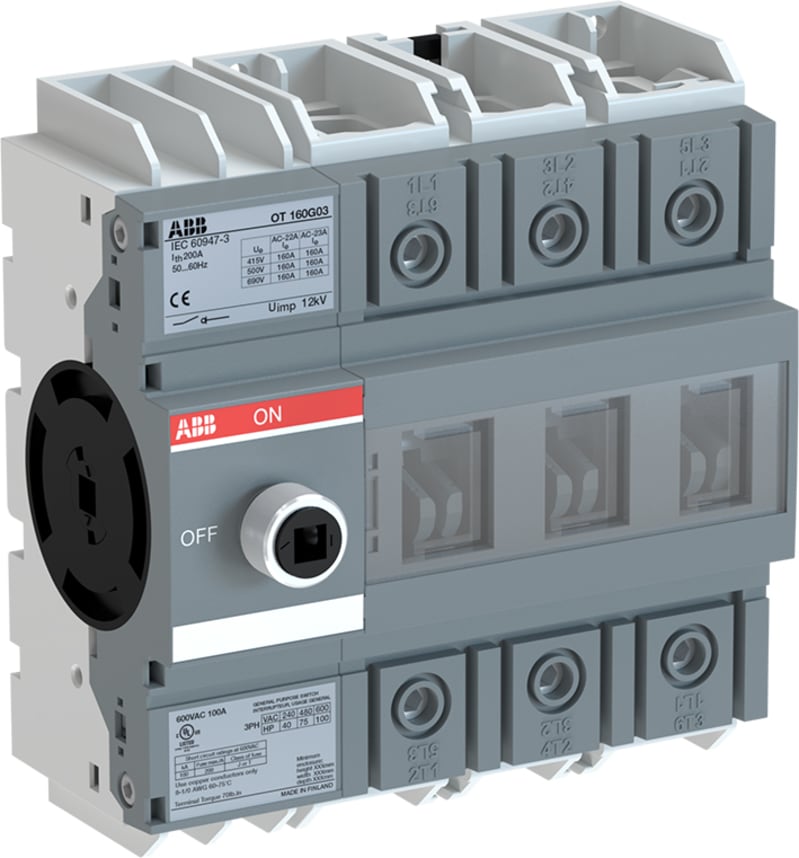

ABB 3-Pole, front operated, base mounted switch-disconnector with protected clamp terminals, handle and shaft are not included 1SCA135134R1001

ABB 1SCA135134R1001 — 3-pole, front operated, base mounted switch-disconnector with protected clamp terminals, handle and shaft are not included.

Manufacturer part number (MPN)

1SCA135134R1001

EAN / GTIN

6417019638355

Sales unit

pcs

End Of Life Disassembling Instructions

1SCC301116M0201

Environmental Information

1SCC301267D0201

Environmental Product Declaration - EPD

1SCC301281D0201

Degree of Protection

Front IP20

Pollution Degree

3

Product Net Width

123 mm

Product Net Height

130 mm

Product Net Depth / Length

73 mm

Cable Cross-Section

Cu 10 ... 70 mm²

Color

Grey

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 160 A

Conventional Thermal Current (I the )

Fully Enclosed 160 A

Distance Between Phases

Standard

Mechanical Durability

20000

Mounting Type

Base mounting

Number of Poles

3P

Operating Mode

Front and Side

Position of Line Terminals

Top In - Bottom Out; Bottom In - Top Out

Power Loss

at Rated Operating Conditions per Pole 6.5 W

Rated Conditional Short-Circuit Current (I nc )

(200 A fuse, 500 V) 100 kA; (200 A fuse, 690 V) 50 kA

Rated Impulse Withstand Voltage (U imp )

12 kV

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 1000 V

Rated Operational Current AC-21A (I e )

(380 ... 415 V) 160 A; (500 V) 160 A; (690 V) 160 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 160 A; (500 V) 160 A; (690 V) 160 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 160 A; (500 V) 160 A; (690 V) 160 A

Rated Operational Power AC-23A (P e )

(220 ... 240 V) 45 kW; (400 ... 415 V) 75 kW; (500 V) 90 kW; (690 V) 132 kW

Rated Operational Voltage

Main Circuit 1000 V

Rated Short-Circuit Making Capacity (I cm )

(690 V) 12 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 4 kA

Special Functions

No

Standards

IEC 60947-3 / UL 98 / CSA C22.2 NO.4

Switches Operating Mechanism

Mechanism at the End of the Switch; 03 (Left Side)

Terminal Type

Screw Terminals

Tightening Torque

acc. IEC 60947-1 6 N·m

Maximum Operating Voltage UL/CSA

600 V

Ampere Rating

125 A

Horsepower Rating UL/CSA

(240 V AC) Single Phase 20 Hp; (440 ... 480 V AC) Single Phase 30 Hp

Tightening Torque UL/CSA

53 in·lb

A2L Certificate – IEC

1SCC301336D0201

ATEX Certificate

No certification needed

Declaration of Conformity - CE

1SCC301210D2701

DNV GL Certificate

1SCC301174D0204

UL Certificate

cULus certificate OT160G

VDE Certificate

No certification needed

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122233

IDEA Granular Category Code (IGCC)

5293 >> Switch disconnector

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Norway)

4372120

HS Code

8536.50

• EAN 6417019638355
• SAP 1200330547
• Code 82312483
