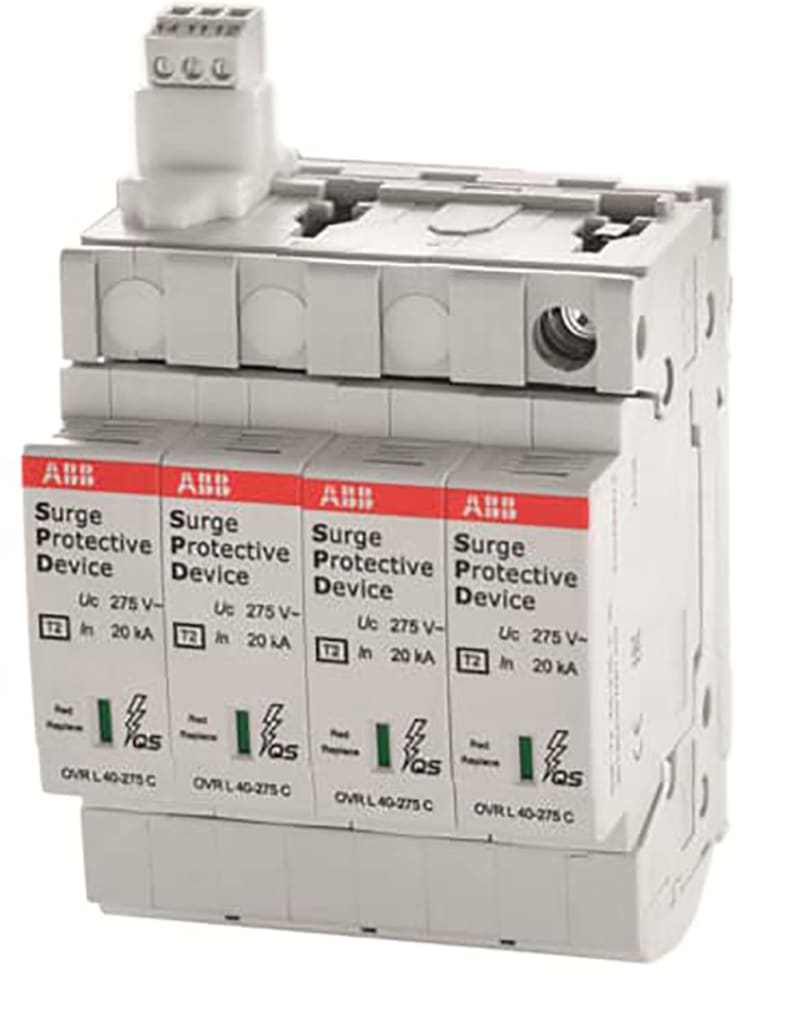

ABB 2CCF606002R0001 ABB Surge Arester SMISSLINE TP Surge Arester Class 2 4POLE TT – TNS
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CCF606002R0001 ABB Surge Arester SMISSLINE TP Surge Arester Class 2 4POLE TT – TNS is listed under Switchgear & Protection / Surge Protectors. Sales unit: pcs; Application: Energy technology; Discharge Current: 20 kA; Impulse Current: 2 kV; Type of Indicator: Optic; Preventive Maintenance Feature: No.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCF606002R0001
- EAN / GTIN
- 7612271455507
- Sales unit
- pcs
- Type of Low Voltage Distribution System
- TT
- Application
- Energy technology
- Maximum Continuous Operating Voltage (U c )
- 240/415 V
- Discharge Current
- 20 kA
- Impulse Current
- 2 kV
- Number of Protected Poles
- 4
- Number of Auxiliary Contacts NC
- 1
- Type of Indicator
- Optic
- Preventive Maintenance Feature
- No
- Accessories Available
- No
- Environmental Information
- 9AKK108467A9561
- Product Net Width
- 72 mm
- Product Net Height
- 109 mm
- Product Net Depth / Length
- 90 mm
- Dimension Diagram
- 9AKK107492A6192
- EPLAN Data
- 9AAC128472_EPLAN
- Declaration of Conformity - CE
- 9AKK107991A9635
- Instructions and Manuals
- 2CCR606020B0001-B
- ETIM 9
- EC002495 - Measurement device for surge protection
- UNSPSC
- 39121610
- eClass
- V11.0 : 27201114
- Object Classification Code
- F
- Standards
- IEC/EN 61643-11
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 20 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 275 V
- Voltage protection level
- 1.4 kV
- Voltage protection level L-N
- 1.25 kV
- Voltage protection level N-PE
- 1.4 kV
- Integrated backup fuse
- No
- Mounting method
- On basic element
- Construction size
- 4 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 16 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Bulgaria
Standards & Compliance
- HS Code
- 8536.20
