Power Supply CP-E 24/5.0

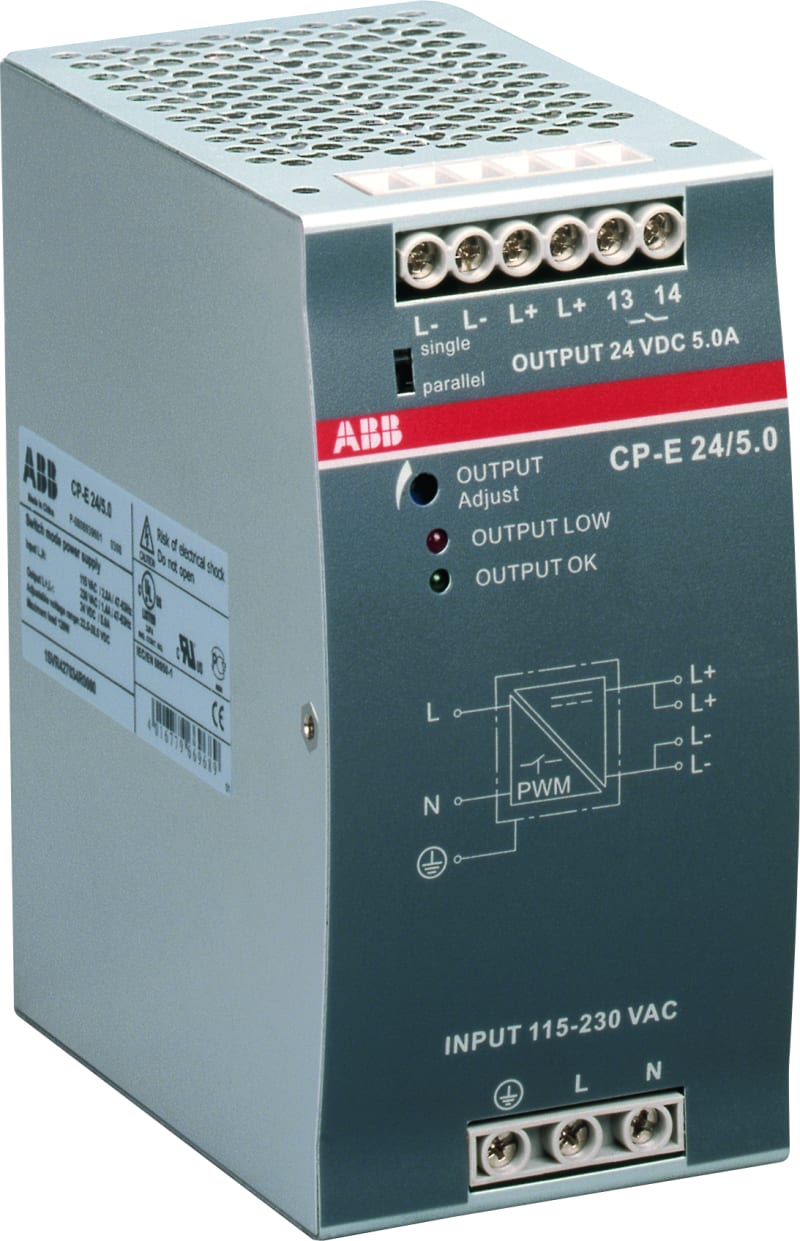

ABB CP-E 24/5.0 — The CP-E 24/5.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.

Manufacturer part number (MPN)

CP-E 24/5.0 EAN / GTIN: 4016779669689 Sales unit: pcs Country of Origin: Germany Lead Time: 0 day Product Sales Status: Active Product Net Width: 63.2 mm Product Net Height: 123.6 mm Product Net Depth / Length: 123.6 mm Function: Switch mode power supply Number of Phases: 1-phase Rated Input Voltage (U IN ): 115 / 230 V AC Input Voltage (U in ): 90 ... 132 V AC; 180 ... 264 V AC; 210 ... 375 V DC Rated Frequency (f): 50 Hz Rated Frequency Limits: 47 ... 63 Hz Characteristic of Output: U/I characteristic curve Rated Output Power: 120 W Output Power: 120 W Rated Output Voltage: 24 V DC Output Voltage (U out ): 24 V DC; 22.5 ... 28.5 V DC Rated Output Current: 5 A Output Current: 5 A Rated Impulse Withstand Voltage (U imp ): Input Circuit / Output Circuit 4 kV; Input Circuit / PE 2.5 kV; Input Circuit / Relay Contact 4 kV; Output Circuit / PE 0.5 kV Rated Insulation Voltage (U i ): Input Circuit / Output Circuit 300 V; Input Circuit / PE 300 V; Input Circuit / Relay Contact 300 V; Output Circuit / PE 50 V Degree of Protection: Housing IP20; Terminals IP20 Pollution Degree: 2 Connecting Capacity Input Circuit: Flexible with Ferrule 0.2 ... 4 mm²; Rigid 0.2 ... 6 mm² Connecting Capacity Output Circuit: Flexible with Ferrule 0.2 ... 4 mm²; Rigid 0.2 ... 6 mm² Tightening Torque: Input Circuit 1 N·m; Output Circuit 0.62 N·m Wire Stripping Length: Input Circuit 8 mm; Output Circuit 8 mm Recommended Screw Driver: PH2 minimum Mounting Distance: Electrical Conductive Board, Horizontal 25 mm; Electrical Conductive Board, Vertical 25 mm; Other Device Same Type, Horizontal 25 mm; Other Device Same Type, Vertical 25 mm Mounting Position: 1 Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 Standards: ANSI/ISA-12.12; CAN/CSA C22.2 No.107.1; CAN/CSA C22.2 No.213; CAN/CSA C22.2 No.60950; IEC/EN 63000; IEC 60950-1; IEC/EN 61000-6-2; IEC/EN 61000-6-3; UL 508; UL 60950 Connecting Capacity Input Circuit UL/CSA: Rigid 24-10 AWG Connecting Capacity Output Circuit UL/CSA: Rigid 24-10 AWG Tightening Torque UL/CSA: Input Circuit 9 in·lb; Output Circuit 5.5 in·lb Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2: Level 4 Air Discharge 15 kV; Level 4 Contact Discharge 8 kV Surge Immunity acc. to IEC 61000-4-5: Level 3 Line-to-Line 2 kV; Level 4 Line-to-Ground 4 kV Conducted Disturbances Immunity acc. to IEC 61000-4-6: Level 3 10 V Electromagnetic Compatibility (EMC): Immunity - Class B; Emission - Class B Ambient Air Temperature: Operation -35 ... +70 °C; Storage -40 ... +85 °C Maximum Operating Altitude Permissible: 5000 m cUL Certificate: cUL508_E174460 cUR Certificate: cUR60950_E196145; cUR_ANSI_E317914 Declaration of Conformity - CE: 1SVD982035-00 TÜV Certificate: TUV_EN62368_B_0442540031_20200924 UL Certificate: UL508_E174460 UR Certificate: UR60950_E196145; UR_ANSI_E317914 Object Classification Code: T ETIM 9: EC002540 - DC-power supply eClass: V11.0 : 27040701 UNSPSC: 39121004 E-Number (Finland): 2712082 E-Number (Norway): 6609450 E-Number (Sweden): 5248134

HS Code

8504.40

• EAN 4016779669689
• SAP 1000407586
• Code 81123234
