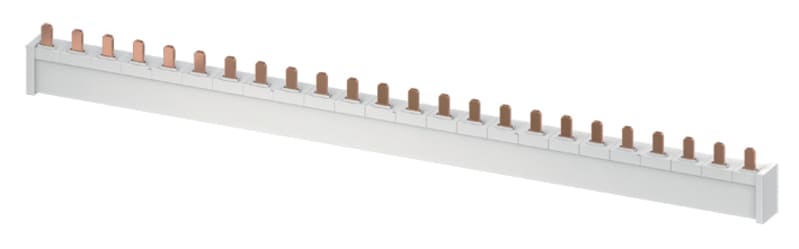

Rail 3-Phase S800-BB250
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCS800900R0071 — The S803-BB250 is a 3-pole busbar with 24 terminal lugs. It can be used for rated current up to 250A.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCS800900R0071
- EAN / GTIN
- 7612271208288
- Sales unit
- pcs
- Suitable For
- S800S; S800N; S800C; S800B
- Rated Operational Current (I e )
- 250 A
- Model Number
- Flat
- Tightening Torque
- 3.5 N·m
- Recommended Screw Driver
- Pozidriv 2
- Terminal Type
- Screw Terminals
- Rated Operational Voltage
- 400/690 V AC
- Rated Insulation Voltage (U i )
- 690 V AC
- Rated Current (I n )
- 250 A
- Rated Frequency (f)
- 50...60 Hz
- Housing Material
- Insulation group I
- Ambient Air Temperature
- Operation -25 ... +60 °C; Storage -40 ... +70 °C
- Degree of Protection
- acc. to IEC 60529 IP20
- Environmental Information
- 2CCY413207D0203
- Product Net Width
- 60 mm
- Product Net Height
- 27 mm
- Product Net Depth / Length
- 654 mm
- Dimension Diagram
- 2CCC413003C0201
- Instructions and Manuals
- 9AKK106930A3418
- ETIM 9
- EC001522 - Busbar
- UNSPSC
- 39121117
- eClass
- V11.0 : 27370303
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- Object Classification Code
- F
- Standards
- IEC 60439-2
- Insulated
- Yes
- Number of phases
- 3
- Cross section
- 35 mm²
- Rated permanent current Iu
- 250 A
- Number of poles
- 24
- Length
- 654 mm
- Conditioned rated short-circuit current Iq
- 25 kA
- Rated surge voltage
- 4 kV
- Type of electric connection
- Pin
- Rated short-time withstand current lcw
- 25 kA
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 8
- Max. rated operation voltage Ue
- 690 V
- Module width
- 26.5 mm
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7612271208288
- SAP 1200641794
- Code 83054242
