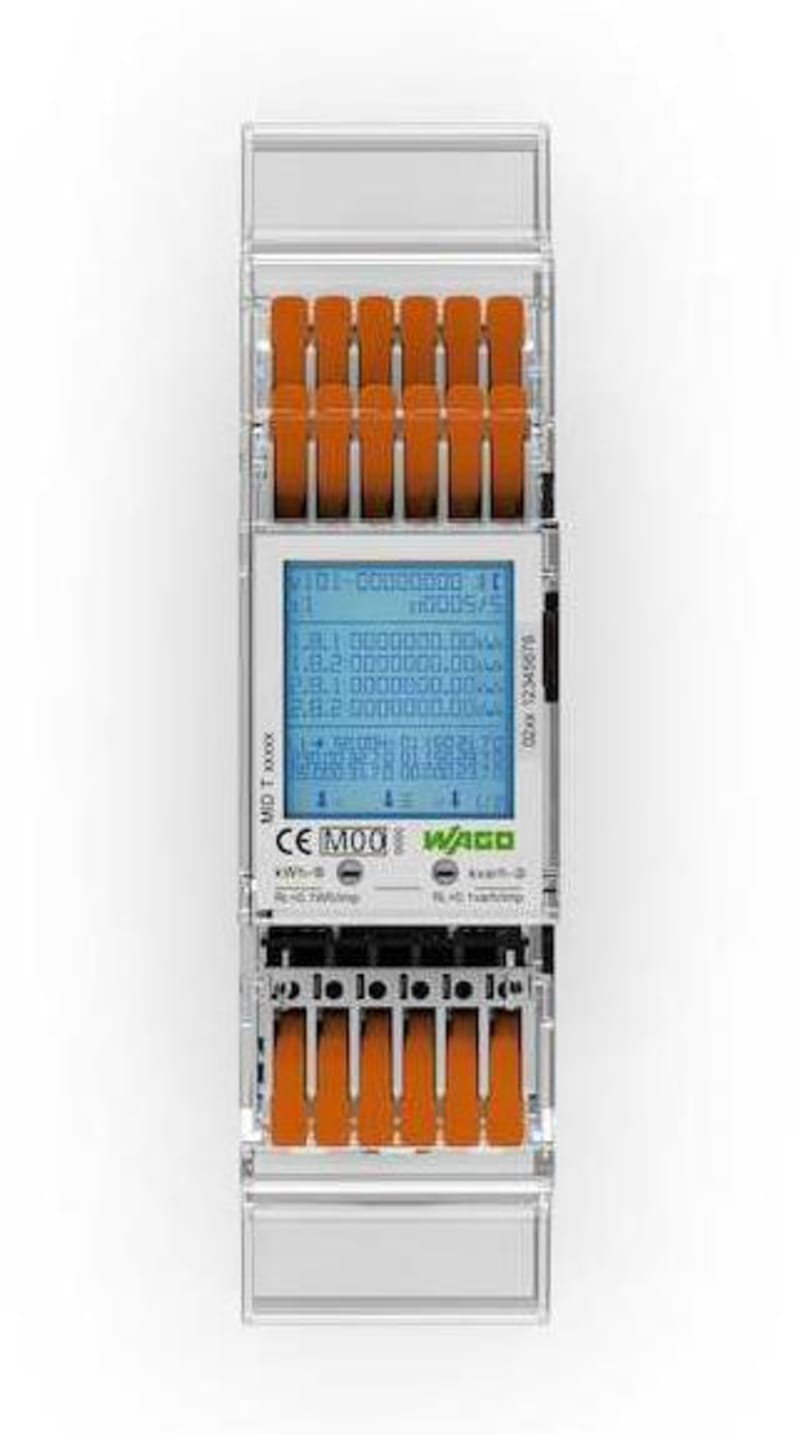

Energy meter (MID26), 1 A / 5 A, 3X230/400V, 50Hz, 2 x S0 interface, 2PU CT
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 879-3040 Manufacturer description: Energy meter (MID26); for transformer connection; 1 A / 5 A; 3x230/400V; 50Hz; Modbus® and M-Bus; 2 x S0 interface; 2PU CT. MID approved energy meter.
Technical Specifications
- Manufacturer part number (MPN)
- 879-3040
- EAN / GTIN
- 4066966177299
- Sales unit
- pcs
- Dielectric strength
- 4 kV; 1 min
- Impulse withstand voltage (1.2/50 μs)
- 6 kV
- Pollution degree
- 2
- Protection class
- II
- Protection type
- IP51 / IP20; IP51 (front side); IP20 (connection)
- Connection position
- Output bottom (PU)
- Design
- 2PU CT
- Width
- 36 mm / 1.417 inches
- Height
- 140 mm / 5.512 inches
- Depth
- 63 mm / 2.48 inches
- Mounting type
- DIN-35 rail
- Housing design
- DIN-rail-mount enclosure
- Housing material
- PC 940A
- Weight
- 165 g
- Ambient temperature (operation)
- -40 … +70 °C
- Relative humidity
- ≤ 75 % (for storage ≤ 95 %)
- Conformity marking
- CE
- Standards/specifications
- EN 50470-1/3
- Accounting guideline
- MID
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- CN
- Customs tariff number
- 90283019000
- UNSPSC
- 41,113,630
- ETIM 9.0
- EC001102
- ETIM 10.0
- EC001506
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Frequency
- 50 Hz
- MPN
- 879-3040
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Measurement transformer
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Power consumption
- 2 W
- Max. current (Imax)
- 5 A
- Width in number of modular spacings
- 2
- Number of positions total (counter)
- 2
- Type of meter
- Electronic
- Degree of protection (IP)
- IP51
- Type of interface
- Modbus
- Energy type
- Effective power and reactive power
- Tariff type
- Multi-tariff
- Tariff control
- External
- Escapement mechanism
- No
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Electrical
- Pulse type
- S0
- Pulse rate
- 0.01–10000 Imp/kWh (kvarh)
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- No
- Nominal voltage (Un) N-L
- 230 V
- Nominal voltage (Un) L-L
- 400 V
- Nominal current (In)
- 1 A
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 4066966177299
- SAP 1200538504
- Code 82824070
