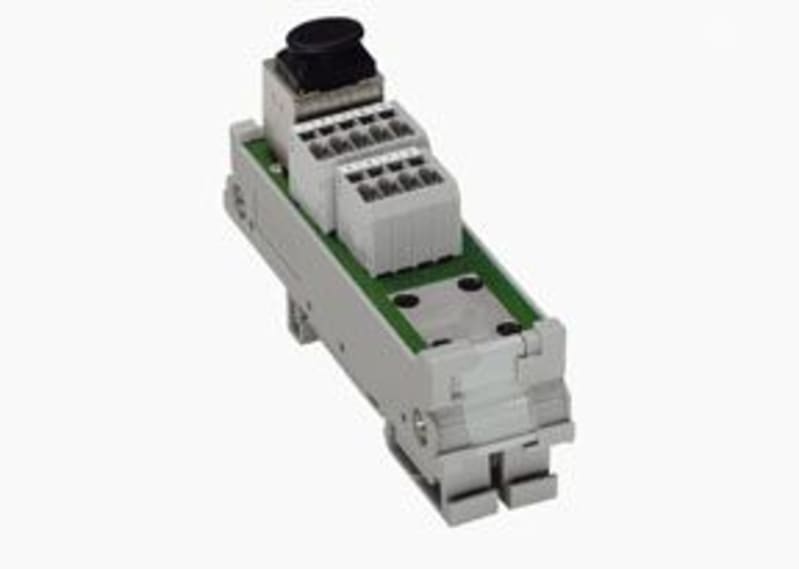

Interface module, RJ-45, Cat. 5, 1,50 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 289-175 Manufacturer description: Interface module; RJ-45; PCB terminal blocks, double-row; Cat. 5; in mounting carrier; with shield connection; with shield clamping saddle; 1,50 mm². Interface module Ethernet RJ45.
Technical Specifications
- Manufacturer part number (MPN)
- 289-175
- EAN / GTIN
- 4045454317522
- Sales unit
- pcs
- Nominal current
- 1.5 A
- Insulation resistance
- ≥ 500 MΩ
- Specialty functions
- with shield connection
- Dielectric strength (contact/contact) (AC, 1 min)
- 1 kVeff
- Mating cycles
- 500
- Transmission length (max.)
- 100 m
- Connection cable
- Cat. 5 (min.)
- Width
- 24 mm / 0.945 inches
- Height
- 85 mm / 3.346 inches
- Depth from upper-edge of DIN-rail
- 40 mm / 1.575 inches
- Mounting type
- DIN-35 rail
- Housing design
- Mounting carrier
- Fire load
- 0.494 MJ
- Weight
- 35 g
- Ambient temperature (operation)
- -40 … +85 °C (Actuation: -35 … +85 °C)
- Ambient temperature UL (operation at UN)
- -40 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Relative humidity
- ≤ 85 % (non-condensing)
- Standards/specifications
- DNV
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 10 (1) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,421
- eCl@ss 10.0
- 19-17-90-01
- eCl@ss 9.0
- 19-17-90-01
- ETIM 9.0
- EC001121
- ETIM 10.0
- EC002780
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 289-175
- Model
- Bus (jack)
- Screened
- Yes
- Suitable for round cable
- No
- Suitable for flat cable
- No
- Suitable for litz wire conductor
- No
- Suitable for solid conductors
- No
- Type of connector
- RJ45 8(8)
- Special tool necessary
- No
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4045454317522
- SAP 1000337710
- Code 8369383
Product Documentation
