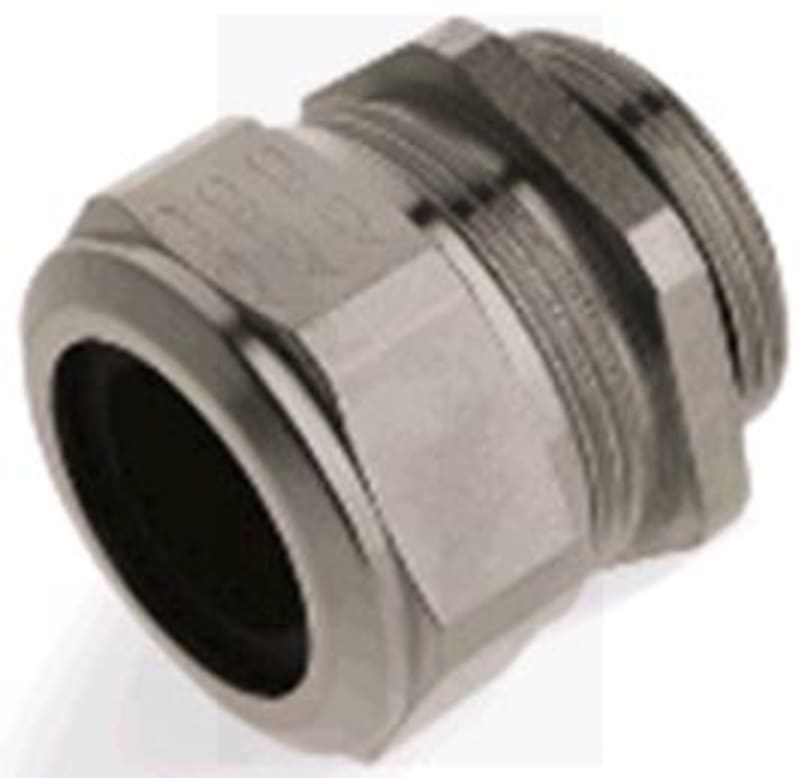

Cable fitting; M25 x 1.5 with O-ring; Brass; silver-colored
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 895-1604 Manufacturer description: Cable fitting; M25 x 1.5 with O-ring; Brass; silver-colored. Cable gland M25 steel 20-26mm m/o-ring.
Technical Specifications
- Manufacturer part number (MPN)
- 895-1604
- EAN / GTIN
- 4045454006464
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Color
- silver-colored
- Insulation material (main housing)
- Polyamide 66 (PA 66)
- Fire load
- 0.648 MJ
- Weight
- 48 g
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- Product Group
- 20 (Winsta)
- PU (SPU)
- 5 pcs
- Packaging type
- box
- Country of origin
- CH
- Customs tariff number
- 74198090990
- UNSPSC
- 39,121,431
- eCl@ss 10.0
- 27-14-44-32
- eCl@ss 9.0
- 27-14-44-32
- ETIM 9.0
- EC000441
- ETIM 10.0
- EC000441
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 895-1604
- Thread type
- Metric
- Nominal thread size metric/PG
- 25
- Pitch thread
- 1.5 mm
- Suitable for cable diameter
- 20–26 mm
- Material
- Metal
- Material quality
- Brass
- Halogen free
- No
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP20
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Separable screw gland
- No
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
