Komponentklemme; 4-Conductor (280-623/281-410)
Pricing
Request a quote
We reply within 24 hours
Product Description

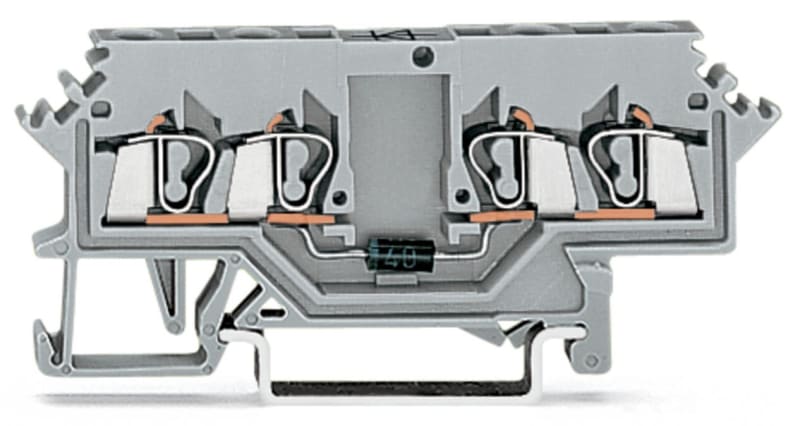

WAGO 280-623/281-410 Komponentklemme; 4-conductor; with diode 1N4007; anode, left-hand side; 2,5 mm²; CAGE CLAMP®; grey.
Technical Specifications
- Manufacturer part number (MPN)
- 280-623/281-410
- EAN / GTIN
- 4050821275411
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Explosion-tested version 'Ex e'
- No
- Connectable conductor cross section solid-core
- 0.08–2.5 mm²
- Connectable conductor cross section multi-wired
- 0.08–2.5 mm²
- Rated current In
- 0.5 A
- Rated voltage
- 250 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 4
- Internally connected stages
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–105 °C
- Width
- 5 mm
- Height
- 73 mm
- Depth
- 28 mm
- Closing plate required
- Yes
- Colour
- Grey
- Type of component
- Diode
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4050821275411
- SAP 1201001870
- Code 84345687
Product Documentation
