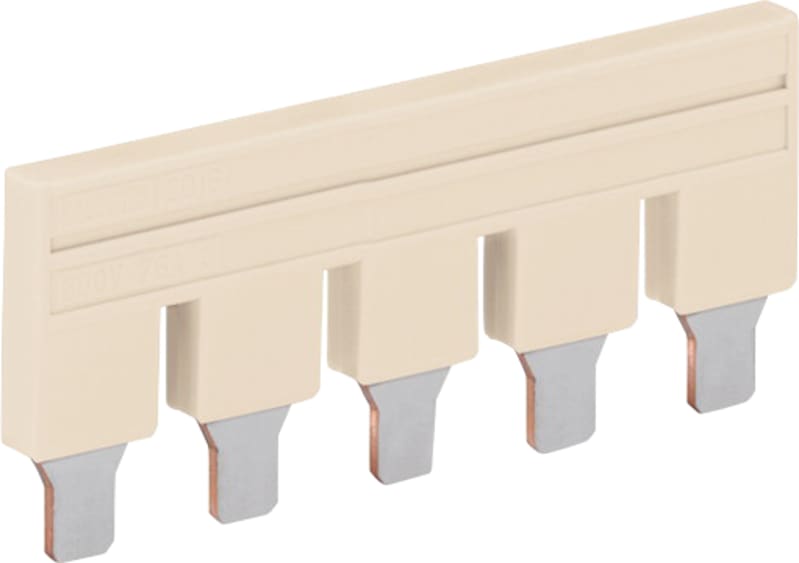

Jumper; 5-Way; insulated; light gray (2010-405)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2010-405 Manufacturer description: Jumper; 5-way; insulated; light gray. Insulated jumper link, 5-pole, 57A. Light grey.
Technical Specifications
- Manufacturer part number (MPN)
- 2010-405
- EAN / GTIN
- 4044918558822
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Number of spacings
- 5 -fach
- Rated current
- 57 A
- Width
- 47.6 mm / 1.874 inches
- Height
- 4.1 mm / 0.161 inches
- Depth
- 23 mm / 0.906 inches
- Color
- light gray
- Fire load
- 0.037 MJ
- Weight
- 10 g
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 25 pcs
- Packaging type
- Bag
- Country of origin
- DE
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,421
- eCl@ss 10.0
- 27-14-11-40
- eCl@ss 9.0
- 27-14-11-40
- ETIM 9.0
- EC000489
- ETIM 10.0
- EC000489
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- EAN
- 4055143701990
- MPN
- 2010-405
- Mounting method
- Pluggable
- Colour
- Grey
- Model
- Transverse connector
- Insulated
- Yes
- Rated voltage
- 800 V
- Modular spacing
- 10 mm
- Number of bridged clamps
- 5
- With contact protection
- Yes
- Rated current In
- 57 A
- Explosion-tested version 'Ex e'
- Yes
Standards & Compliance
- HS Code
- 8536.69
