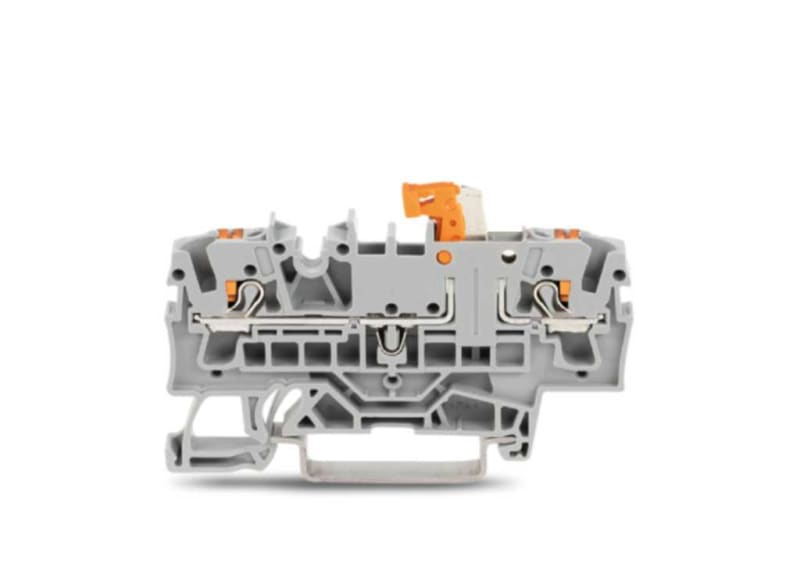

2-Conductor disconnect/test terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm² (2202-1671)

WAGO 2202-1671 Manufacturer description: 2-conductor disconnect/test terminal block; with push-button; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray. 2-conductor isolation-/test terminal;with push-button;with test option;grey.

Manufacturer part number (MPN)

2202-1671

EAN / GTIN

4055143895477

Sales unit

pcs

Package quantity

50 pcs

Clamping units

2

Number of levels

1

Number of jumper slots

2

Width

5.2 mm / 0.205 inches

Height

66.1 mm / 2.602 inches

Depth from upper-edge of DIN-rail

32.9 mm / 1.295 inches

Mounting type

DIN-35 rail

Marking level

Center/side marking

Color

gray

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.147 MJ

Actuator color

orange

Weight

7.8 g

Processing temperature

-35 … +85 °C

Continuous operating temperature

-60 … +105 °C

PU (SPU)

50 pcs

Packaging type

box

Country of origin

DE

Customs tariff number

85365080000

UNSPSC

39,121,410

ETIM 9.0

EC000902

ETIM 10.0

EC000902

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Conductor cross-section

2.5 mm²

MPN

2202-1671

Connectable conductor cross section solid-core

0.75–4 mm²

Connectable conductor cross section multi-wired

0.25–2.5 mm²

Rated current In

16 A

Rated voltage

400 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Number of clamp positions per level

2

Internally connected stages

No

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

105 °C

Depth

32.9 mm

Closing plate required

Yes

Colour

Grey

Type of slitting

None

Type of cross disconnection

None

With integrated test socket

No

HS Code

8536.50
