WAGO

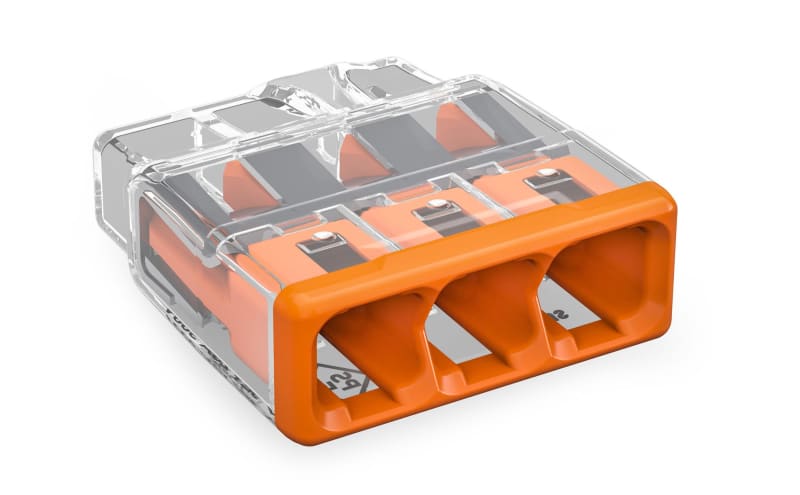

Innpluglemme 3X4MM² in blister
Part number2773-403/995-020EAN / GTIN4066966001549HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2773-403/995-020 Push-In Terminal 2x4mm², transparent in blisterpakk.
Technical Specifications
- Manufacturer part number (MPN)
- 2773-403/995-020
- EAN / GTIN
- 4066966001549
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Conductor cross-section
- 4 mm²
- Clamping units
- 3
- Total number of potentials
- 1
- Width
- 16.4 mm / 0.646 inches
- Height
- 6.3 mm / 0.248 inches
- Depth
- 18.6 mm / 0.732 inches
- Color
- transparent
- Cover color
- orange
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact Plating
- Tin
- Fire load
- 0.026 MJ
- Ambient temperature (operation)
- +85 °C
- Processing temperature
- -35 … +60 °C
- Continuous operating temperature
- -40 … +105 °C
- Temperature marking per EN 60998
- T85
- PU (SPU)
- 1000 (100) pcs
- Packaging type
- box
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Nominal current
- 32 A
- Nominal voltage
- 450 V
- Colour
- Orange
- Number of clamp positions
- 3
- Cable diameter
- 1.6–2 mm
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.75–4 mm²
- AWG-range
- 12–20
- Nominal cross section
- 0.75–4 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- No
- Transparent
- Yes
- With operation lever
- No
- Min. AWG-size
- 12
- Max. AWG-size
- 20
- Type of locking/unlocking
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966001549
- SAP 1200568904
- Code 82933640
Product Documentation
Document preview: Innpluglemme 3X4MM² in blister (2773-403/995-020) — Specification sheet
