WAGO

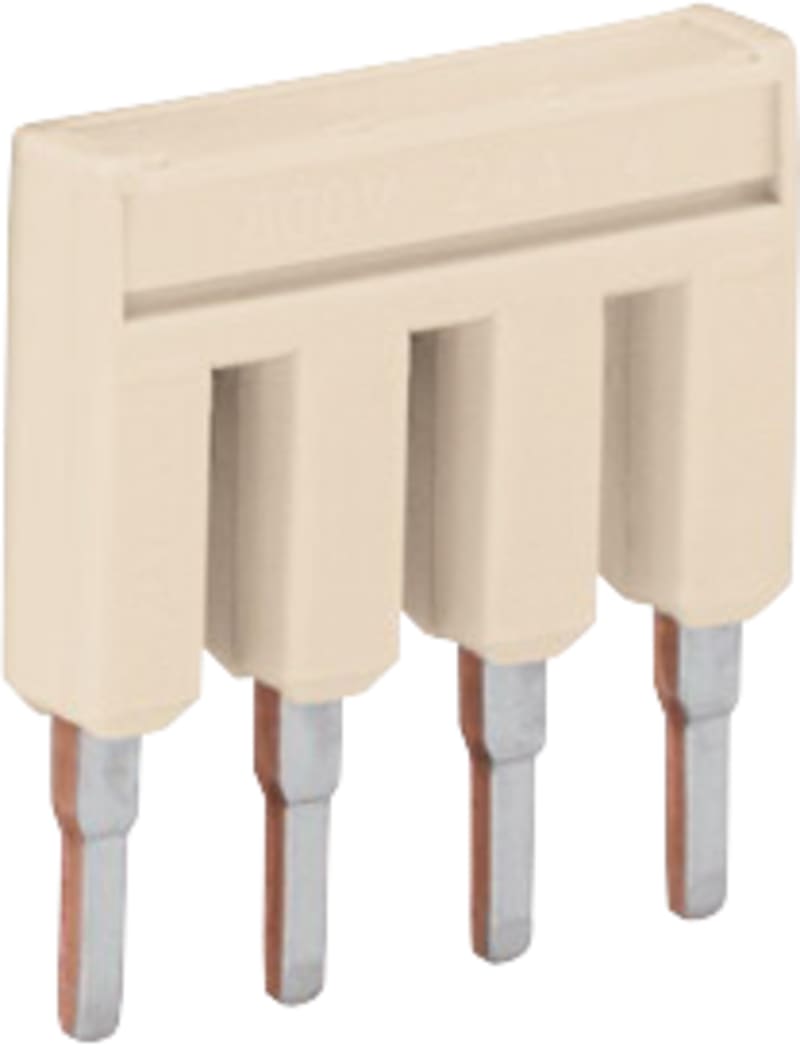

Jumper; 4-Way; insulated; light gray (2004-404)
Part number2004-404EAN / GTIN4055143699846HS code8536.69
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2004-404 Manufacturer description: Jumper; 4-way; insulated; light gray. Insulated jumper link, 4-pole, 4mm², 32A. Light grey.
Technical Specifications
- Manufacturer part number (MPN)
- 2004-404
- EAN / GTIN
- 4055143699846
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Number of spacings
- 4 -fach
- Rated current
- 32 A
- Width
- 22.8 mm / 0.898 inches
- Height
- 4.1 mm / 0.161 inches
- Depth
- 19 mm / 0.748 inches
- Color
- light gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.013 MJ
- Weight
- 3.1 g
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 25 pcs
- Packaging type
- Bag
- Country of origin
- DE
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-40
- eCl@ss 9.0
- 27-14-11-40
- ETIM 9.0
- EC000489
- ETIM 10.0
- EC000489
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Processing temperature (min.)
- -35. °C
- Processing temperature (max.)
- 85. °C
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature from
- -60 °C
- Continuous operating temperature up to
- 105 °C
- Continuous operating temperature
- -60 … +105 °C
- MPN
- 2004-404
- Mounting method
- Pluggable
- Colour
- Grey
- Model
- Transverse connector
- Insulated
- Yes
- Rated voltage
- 800 V
- Modular spacing
- 6.2 mm
- Number of bridged clamps
- 4
- With contact protection
- Yes
- Rated current In
- 32 A
- Explosion-tested version 'Ex e'
- Yes
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4055143699846
- SAP 1000085918
- Code 8819737
Product Documentation
Document preview: Jumper; 4-Way; insulated; light gray (2004-404) — Specification sheet
