WAGO

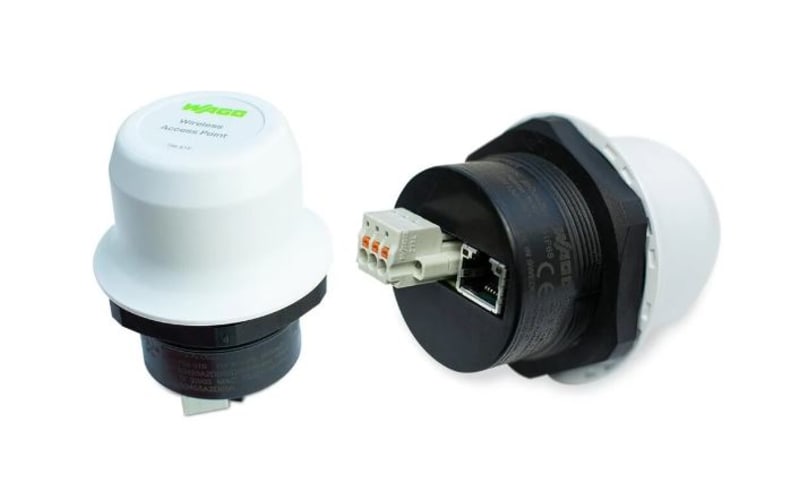

Wireless Access Point
Part number758-919EAN / GTIN4066966110579HS code8517.62
Communications
Network & Data
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 758-919 Manufacturer description: Wireless Access Point. Wireless access point.
Technical Specifications
- Manufacturer part number (MPN)
- 758-919
- EAN / GTIN
- 4066966110579
- Sales unit
- pcs
- Security encryption
- Bluetooth® 2.1: NIST-compliant; FIPS-approved (authentication and authorization, encryption and data security, privacy and discretion); Bluetooth® 4.0 (Low Energy): AES-CCM encryption
- Radio technology
- Bluetooth® 2.1 | Bluetooth® 4.0 (Low Energy) | Bluetooth® 2.1 | Bluetooth® 4.0 (Low Energy) | WLAN: IEEE 802.11 a, b, g, n, d, r
- Frequency band
- ISM band, 2.4 GHz (Bluetooth®, WLAN); ISM band, 5 GHz (WLAN)
- Security authentication
- WLAN: WEP 64/128; WPA; WPA-PSK and WPA2; TKIP and AES/CCMP; LEAP; PEAP including MS-CHAP
- Transmission range
- up to 200 m
- Antenna
- Internal 2.4 GHz and 5 GHz broadband antenna
- Configuration options
- Web-Based Management
- Supply voltage
- 19 … 36 VDC
- Connection technology
- communication/fieldbus: 1 x RJ-45
- Connection technology
- supply: 1 x Female connector; 3-pole
- Height
- 75 mm
- Mounting type
- M50 through-panel installation (cut-out = 50.5 mm)
- Weight
- 84 g
- Conformity marking
- CE
- Ambient temperature (operation)
- -40 … +65 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Protection type
- IP67
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- SE
- Customs tariff number
- 85176200000
- UNSPSC
- 43,222,631
- ETIM 9.0
- EC000816
- ETIM 10.0
- EC000816
- ECCN
- 5A992.C
- RoHS Compliance Status
- Compliant,No Exemption
- EAN
- 4066966802511
- MPN
- 758-919
- Ethernet
- Yes
- ISDN
- No
- xDSL
- No
- UMTS
- No
- Long-Term Evolution (LTE)
- No
- Analogue
- No
- USB
- No
- Empty chassis
- No
- Mounting method
- DIN rail (top hat rail)
- Radio protocol
- IEEE 802.11 g
- Number of ports 10/100 Mbps LAN
- 1
- Firewall
- No
- VPN
- No
- Degree of protection (IP)
- IP67
- Mobile communications standard 3G (UMTS)
- No
- Mobile communications standard 4G (LTE)
- No
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4066966110579
- SAP 1200840876
- Code 84033089
Product Documentation
Document preview: Wireless Access Point (758-919) — Specification sheet
More from WAGO
WAGO
Cross-Connector 4-V 2002-404/000-005
WAGO

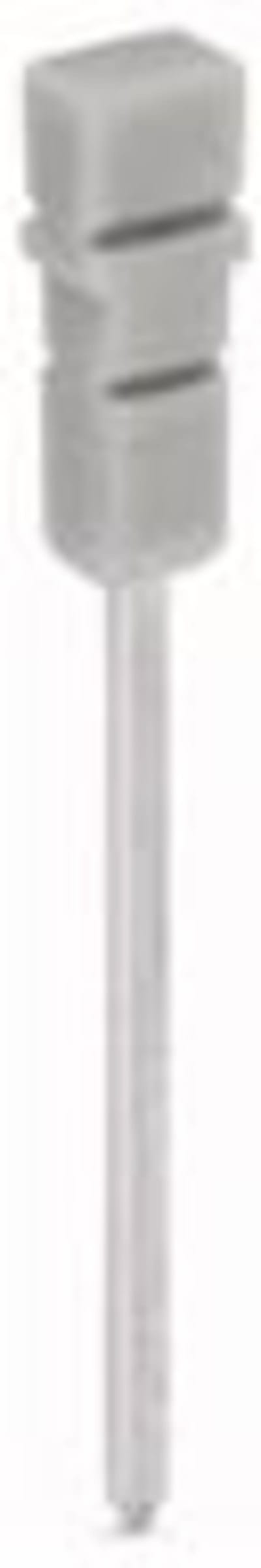

Vertical jumper; insulated; light gray
2002-492
WAGO
Jumper; 3-Way; insulated; light gray (2001-403)
WAGO

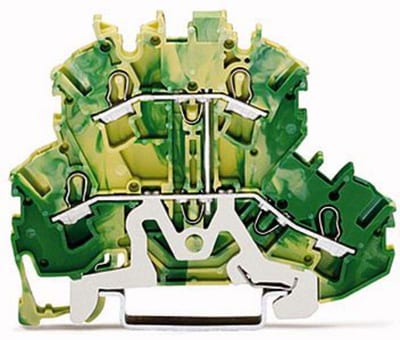

Double-deck terminal block, 4-Conductor ground terminal block, 2.5 mm²
