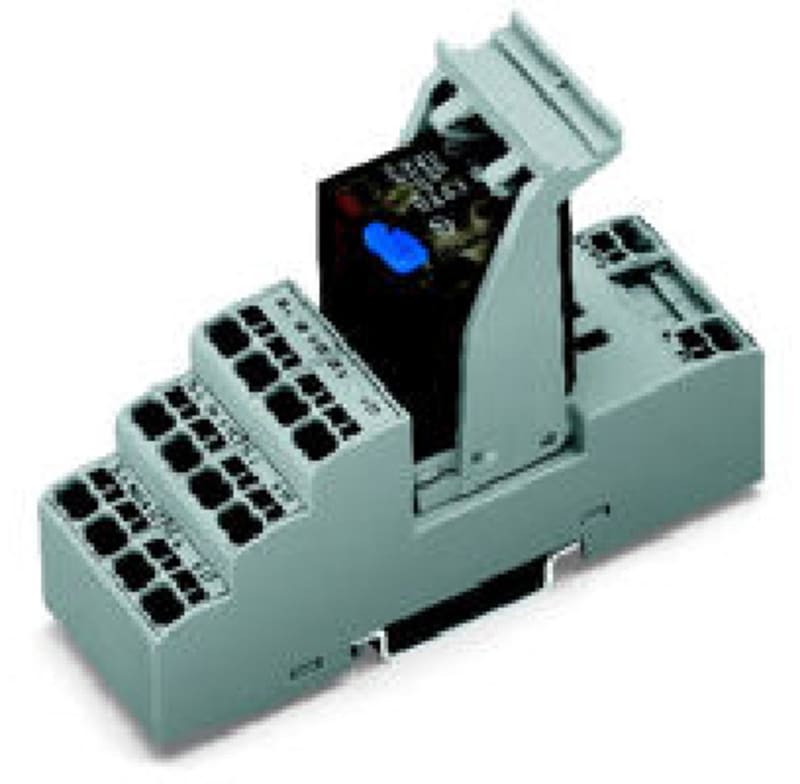

Relay module, Nominal input voltage: 24 VDC, 4 changeover contacts, Limiting continuous current: 5 A
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 858-314 Manufacturer description: Relay module; Nominal input voltage: 24 VDC; 4 changeover contacts; Limiting continuous current: 5 A; with gold contacts; with manual operation; Red status indicator; Module width: 31 mm; 1,50 mm². Relay 230VAC, 4 Changeover Contacts, 5Amp.
Technical Specifications
- Manufacturer part number (MPN)
- 858-314
- EAN / GTIN
- 4045454902926
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Note
- To prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.
- Rated Voltage
- 300 V
- Rated impulse withstand voltage
- 2.5 kV
- Overvoltage category
- II
- Pollution degree
- 2
- Dielectric strength (control/load circuit) (AC, 1 min)
- 1.5 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Dielectric strength (load/load circuit) (AC, 1 min)
- 1.5 kVrms
- Insulation type (control/load circuit)
- Basic insulation
- Insulation type (open contact)
- Functional insulation
- Insulation type (load/load circuit)
- Basic insulation
- Insulation type (adjacent devices)
- Reinforced insulation (safe isolation)
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.34 … 1.5 mm² / 22 … 16 AWG
- Fine-stranded conductor
- 0.34 … 1.5 mm² / 22 … 16 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 31 mm / 1.22 inches
- Height
- 97 mm / 3.819 inches
- Depth from upper-edge of DIN-rail
- 73 mm / 2.874 inches
- Mounting type
- DIN-35 rail
- Mounting position
- horizontal (standing/lying); vertical
- Fire load
- 1.129 MJ
- Weight
- 96.5 g
- Ambient temperature (operation at UN)
- -25 … +70 °C
- Ambient temperature UL (operation at UN)
- -25 … 50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 25 K)
- Relative humidity
- 5 … 85 %
- Operating altitude (max.)
- 2000 m
- Standards/specifications
- EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508 (max. 50 °C) | DNV
- WAGO Basic Relay
- 858-152
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 5 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85364900990
- UNSPSC
- 39,122,334
- eCl@ss 10.0
- 27-37-16-01
- eCl@ss 9.0
- 27-37-16-01
- ETIM 9.0
- EC001437
- ETIM 10.0
- EC001437
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- EAN
- 4055143567893
- MPN
- 858-314
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4045454902926
- SAP 1000337670
- Code 8369327
Product Documentation
More from WAGO
WAGO
KBL5M 5X1,5 PLUG/Plinth
771-9995/006-501
WAGO
WMB marking card, 0V (100X), stretchable 5 - 5.2 mm
794-506
WAGO

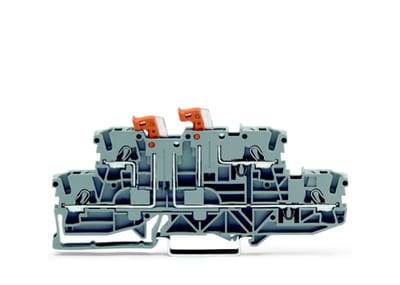

Double-deck, double-disconnect terminal block, with 2 pivoting knife disconnects, 2.5 mm²
2002-2951
WAGO

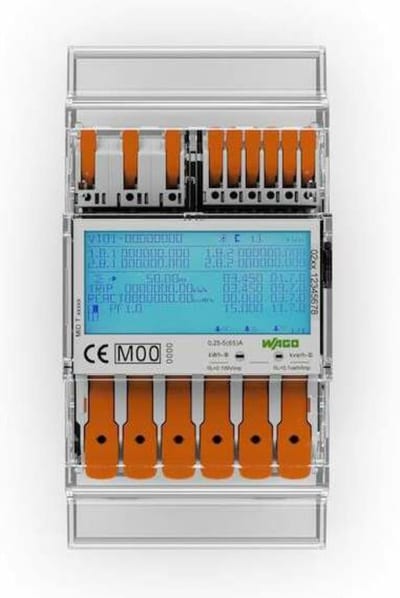

Energy meter (MID24), 65A, 3X230/400V, 50Hz, 2 x S0 interface, 4PU
879-3000
WAGO

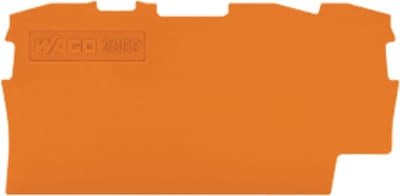

End and intermediate plate; 0.8 mm thick; orange (2002-1392)
WAGO

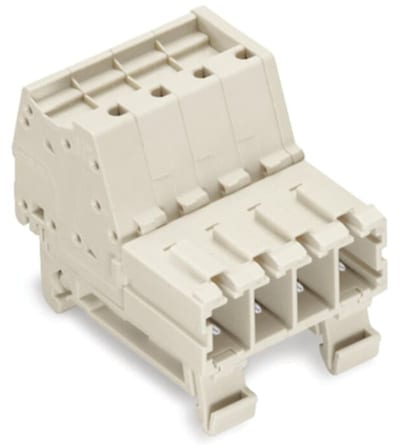

4-Conductor male connection
831-3204/007-000
WAGO

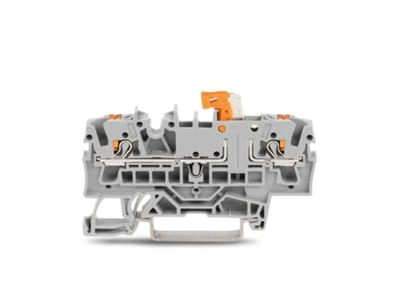

2-Conductor disconnect/test terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm² (2202-1671)
WAGO

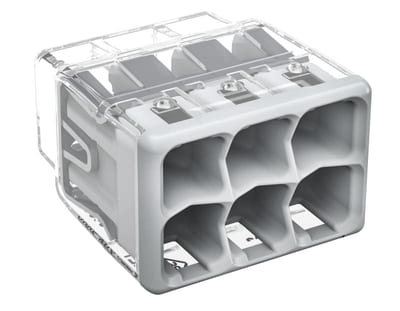

Innpluglemme 6X4MM² in blister
