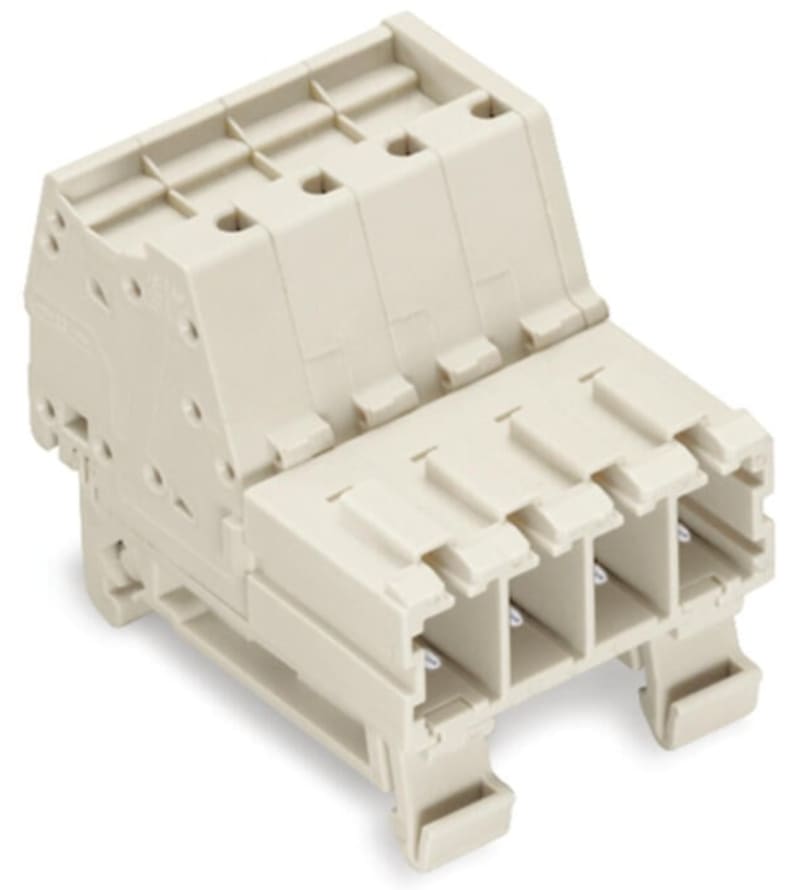

4-Conductor male connection
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 831-3204/007-000 1-conductor male coupling; Push-in CAGE CLAMP®; 10 mm²; Stiftavstand 7,62 mm; 4-pole;.
Technical Specifications
- Manufacturer part number (MPN)
- 831-3204/007-000
- EAN / GTIN
- 4045454333782
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Clamping units
- 4
- Total number of potentials
- 4
- Number of connection types
- 1
- Number of levels
- 1
- Pin spacing
- 7.62 mm / 0.3 inches
- Width
- 32.36 mm / 1.274 inches
- Height
- 27.5 mm / 1.083 inches
- Depth
- 46 mm / 1.811 inches
- Variable coding
- Yes
- Anti-rotation protection
- Yes
- Contact type (pluggable connector)
- Male connector/plug
- Connector (connection type)
- for conductor
- Mismating protection
- Yes
- Plugging without loss of pin spacing
- No
- Locking of plug-in connection
- none
- Color
- light gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact Plating
- Tin
- Fire load
- 0.45 MJ
- Limit temperature range
- -60 … +105 °C
- Processing temperature
- -35 … +60 °C
- Product Group
- 3 (Multi Conn. System)
- PU (SPU)
- 24 pcs
- Packaging type
- box
- Customs tariff number
- 85366930000
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-06
- eCl@ss 9.0
- 27-14-11-06
- ETIM 9.0
- EC001284
- ETIM 10.0
- EC001284
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Mounting method
- DIN rail (top hat rail) 35 mm
- Colour
- Grey
- Halogen free
- Yes
- Rated voltage
- 600 V
- Number of poles
- 4
- Operating temperature
- -60–105 °C
- Number of clamp positions per pole
- 1
- Closing plate required
- No
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Transparent
- No
- Connectable conductor cross section solid-core
- 0.5–10 mm²
- Connectable conductor cross section multi-wired
- 0.5–10 mm²
- Material insulation body
- Thermoplastic
- Rated current In
- 4 A
- Explosion-tested version 'Ex e'
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4045454333782
- SAP 1201001876
- Code 84345680
Product Documentation
More from WAGO
WAGO
2-Conductor disconnect/test terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm² (2202-1671)
WAGO
Innpluglemme 6X4MM² in blister
2773-406/995-010
WAGO
Jumper; from 1 to 3; insulated; light gray
2002-433
WAGO
WMB marking card, 91 ... 100 (10X), stretchable 5 - 5.2 mm
793-5573
WAGO
KBL6M 3X2,5 Plug/Open END
771-9993/207-601
WAGO

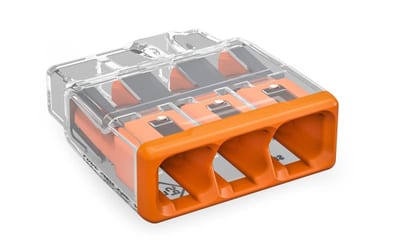

Innpluglemme 3X4MM² in blister
2773-403/995-020
WAGO

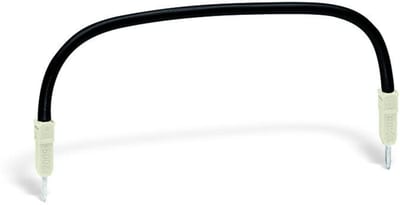

Push-in type wire jumper; 1.5 mm²; insulated; 110 mm long; black
2009-414
WAGO

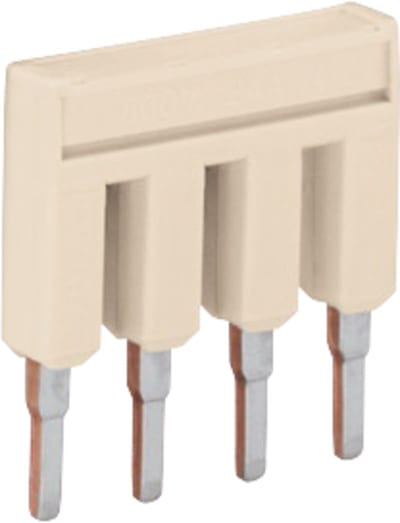

Jumper; 4-Way; insulated; light gray (2004-404)
