WAGO

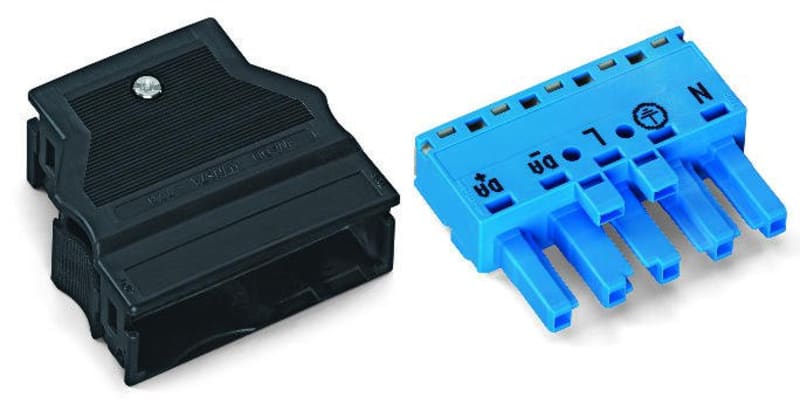

Plinth 5-Pole M Strekk BLUE DALI
Part number770-1105/022-000EAN / GTIN4050821223016HS code8536.69
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 770-1105/022-000 Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 770-1105/022-000
- EAN / GTIN
- 4050821223016
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Clamping units
- 10
- Total number of potentials
- 5
- Pin spacing
- 10 mm / 0.394 inches
- Width
- 50 mm / 1.969 inches
- Height
- 12.9 mm / 0.508 inches
- Depth
- 37.5 mm / 1.476 inches
- Use
- DALI, Lighting Management
- Coding
- I
- Variable coding
- No
- Marking
- N ⏚ L DA- DA+
- Potential marking
- N ⏚ L DA- DA+
- Mating force of a plug-in connection
- approx. 20 … 70 N (depending on pole number)
- Retention force of a plug-in connection
- Locked: > 80 N
- Unmating force of a plug-in connection
- Unlocked: approx. 20 … 70 N (depending on pole number)
- Number of mating cycles
- 200, without resistive load
- Protection type
- IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- Contact type (pluggable connector)
- Female connector/socket
- Connector (connection type)
- for conductor
- Mismating protection
- Yes
- Locking lever
- Can be retrofitted
- Locking of plug-in connection
- Locking lever
- Color
- blue
- Cover color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact material
- Copper or copper alloy; surface-treated
- Contact Plating
- Tin
- Fire load
- 0.234 MJ
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- PU (SPU)
- 50 pcs
- Packaging type
- Box
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-44-06-05
- eCl@ss 9.0
- 27-44-06-05
- ETIM 9.0
- EC002560
- ETIM 10.0
- EC002560
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- RAL-number coding/contact insert
- 5015
- Rated voltage
- 400 V
- Rated current
- 25 A
- Number of poles
- 5
- Degree of protection (IP)
- IP20
- Connection type
- Spring clamp connection
- Model
- Bus
- Cable diameter
- 9–13 mm
- Connection cross section (fine-strand)
- 0.5–4 mm²
- Number of connections per pole
- 2
- Pole codification
- L, N, PE, D1, D2
- Mechanical coding
- Yes
- Colour coding/contact insert
- Blue
- Type of locking
- Separate
- With strain relief
- Yes
- Max. continuous temperature resistance contact part
- 85 °C
- Max. continuous temperature resistance strain relief
- 105 °C
- Housing material
- Polyamide (PA)
- Halogen free
- No
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Continuity resistance
- 1 mOhm
- Rated surge voltage
- 6 kV
- Length
- 76 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4050821223016
- SAP 1000666706
- Code 8361978
Product Documentation
Document preview: Plinth 5-Pole M Strekk BLUE DALI (770-1105/022-000) — Specification sheet
