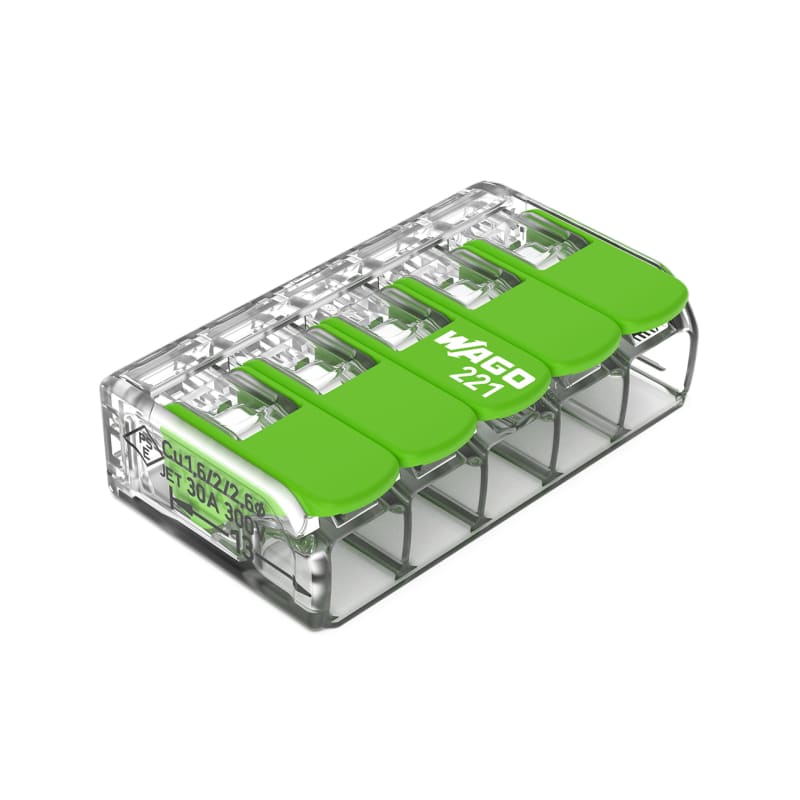

Splicing connector with levers, for all conductor types, max. 6 mm², 5-Conductor (221-625)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 221-625 Manufacturer description: Splicing connector with levers; for all conductor types; max. 6 mm²; 5-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent. Terminal block 6mm2 5-Conductor. Connection Terminals for all types of conductors. Made of recycled materials.
Technical Specifications
- Manufacturer part number (MPN)
- 221-625 EAN / GTIN: 4066966613148 Sales unit: pcs Package quantity: 15 pcs Clamping units: 5 Total number of potentials: 1 Width: 36.7 mm / 1.445 inches Height: 10.1 mm / 0.398 inches Depth: 21.1 mm / 0.831 inches Color: transparent Cover color: transparent material group: IIIa Housing material: bio-circular PC Insulation material (main housing): Polycarbonate (PC) Insulation material (actuator): Bio-circular PBT Flammability class per UL94: V2 Fire load: 0.152 MJ Actuator color: green Weight: 7.1 g Ambient temperature (operation): +85 °C Continuous operating temperature: 105 °C Temperature marking per EN 60998: T85 PU (SPU): 150 (15) pcs Packaging type: Box Country of origin: DE Customs tariff number: 85369010000 UNSPSC: 39,121,409 ETIM 9.0: EC000446 ETIM 10.0: EC000446 ECCN: NO US CLASSIFICATION RoHS Compliance Status: Compliant,No Exemption Conductor cross-section: 6 mm² Nominal current: 41 A Nominal voltage: 450 V Colour: Green Number of clamp positions: 5 Cable diameter: 0.5–6 mm Suitable for solid conductors: Yes Conductor cross section solid (solid, stranded): 0.5–6 mm² Suitable for multi-wire conductors: Yes Suitable for flexible conductors: Yes Transparent: Yes With operation lever: Yes Min. AWG-size: 20 Max. AWG-size: 10 Nominal cross section (installation side): 0.5–6 mm²
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966613148
- SAP 1200832008
- Code 84016456
Product Documentation
More from WAGO
WAGO
Flat cable; Eca; 5G 16 mm²; PVC; 3L + N + PE; 0.6/1 kV; 16,00 mm²; light gray
897-1651
WAGO
WMB marking card, 1 ... 50 (2X), stretchable 5 - 5.2 mm
793-5566
WAGO
2-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2002-1201)
WAGO
WAGO 222-412 Splicing Connector with Levers, 2-Conductor, up to 4 mm²
WAGO
Splicing connector with levers, for all conductor types, max. 6 mm², 2-Conductor (221-622)
WAGO
Double-deck terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm² (2002-2201)
WAGO
4-Conductor modular PCB connector, 0.8 mm Ø, Pin spacing 5.75 mm, 2-Pole (243-211)
WAGO
Cable 3M 5X2,5mm Plinth/PLUG
771-9985/007-301
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 221-625?
- 221-625 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this WAGO product?
- The manufacturer part number is 221-625.
- What is the HS code for 221-625?
- The customs tariff (HS) code for 221-625 is 8536.90.
- Who manufactures 221-625?
- 221-625 is a WAGO product in the Electrical Components range.
- Is a datasheet available for 221-625?
- Yes — the 221-625 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 221-625?
- The minimum order quantity is 1.
- Is 221-625 available?
- Yes — 221-625 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
