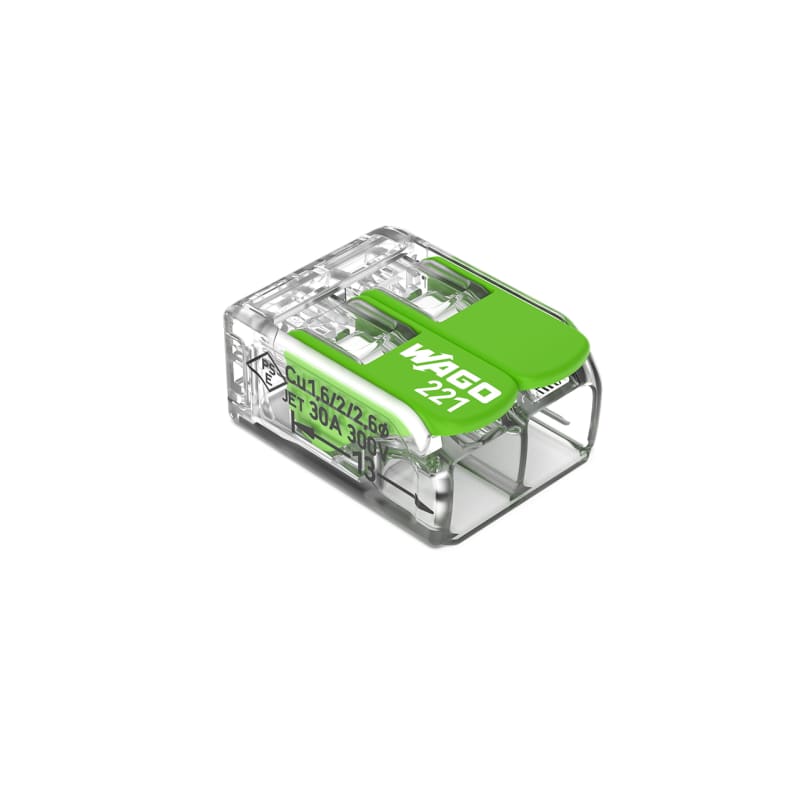

Splicing connector with levers, for all conductor types, max. 6 mm², 2-Conductor (221-622)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 221-622 Manufacturer description: Splicing connector with levers; for all conductor types; max. 6 mm²; 2-conductor; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent. Terminal block 6mm2 2-conductor. Connection Terminals for all types of conductors. Made of recycled materials.
Technical Specifications
- Manufacturer part number (MPN)
- 221-622 EAN / GTIN: 4066966613230 Sales unit: pcs Package quantity: 50 pcs Clamping units: 2 Total number of potentials: 1 Width: 16 mm / 0.63 inches Height: 10.1 mm / 0.398 inches Depth: 21.1 mm / 0.831 inches Color: transparent Cover color: transparent material group: IIIa Housing material: bio-circular PC Insulation material (main housing): Polycarbonate (PC) Insulation material (actuator): Bio-circular PBT Flammability class per UL94: V2 Fire load: 0.067 MJ Actuator color: green Weight: 3 g Ambient temperature (operation): +85 °C Continuous operating temperature: 105 °C Temperature marking per EN 60998: T85 PU (SPU): 500 (50) pcs Packaging type: Box Country of origin: DE Customs tariff number: 85369010000 UNSPSC: 39,121,409 ETIM 9.0: EC000446 ETIM 10.0: EC000446 ECCN: NO US CLASSIFICATION RoHS Compliance Status: Compliant,No Exemption Conductor cross-section: 6 mm² Nominal current: 41 A Nominal voltage: 450 V Colour: Green Number of clamp positions: 2 Cable diameter: 0.5–6 mm Suitable for solid conductors: Yes Conductor cross section solid (solid, stranded): 0.5–6 mm² Suitable for multi-wire conductors: Yes Suitable for flexible conductors: Yes Transparent: Yes With operation lever: Yes Min. AWG-size: 20 Max. AWG-size: 10 Nominal cross section (installation side): 0.5–6 mm²
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966613230
- SAP 1200832006
- Code 84016450
Product Documentation
