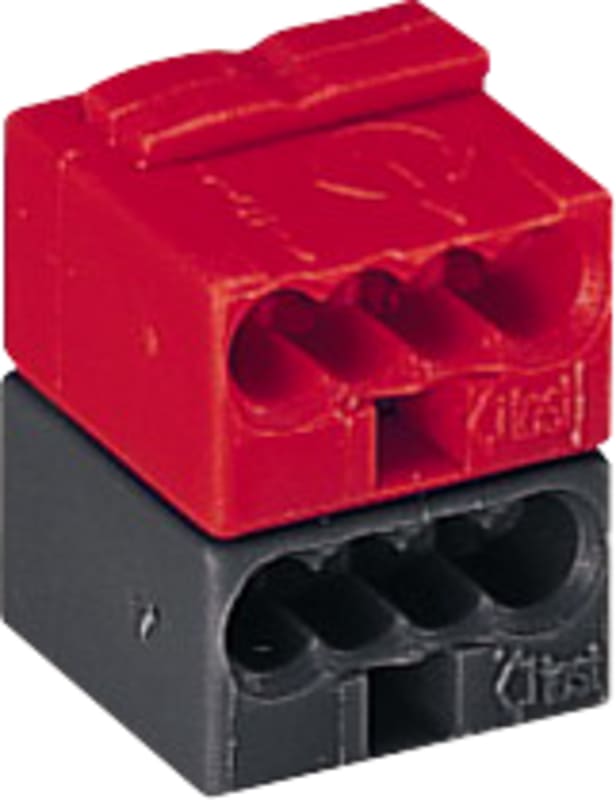

4-Conductor modular PCB connector, 0.8 mm Ø, Pin spacing 5.75 mm, 2-Pole (243-211)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 243-211 Manufacturer description: 4-conductor modular PCB connector; PUSH WIRE®; 0.8 mm Ø; Pin spacing 5.75 mm; 2-pole; for individual solder pins; for KNX; dark gray/red. 4-pole EIB Terminal, compact, red/Ssort.
Technical Specifications
- Manufacturer part number (MPN)
- 243-211
- EAN / GTIN
- 4017332131711
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 8
- Total number of potentials
- 2
- Number of connection types
- 1
- Number of levels
- 1
- Width
- 10 mm / 0.394 inches
- Height
- 11.5 mm / 0.453 inches
- Depth
- 10 mm / 0.394 inches
- Contact type (pluggable connector)
- Female connector/socket
- Connector (connection type)
- for conductor
- Color
- dark gray/red
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact material
- Electrolytic copper (ECu)
- Contact Plating
- Tin
- Fire load
- 0.022 MJ
- Weight
- 1.5 g
- Limit temperature range
- -60 … +105 °C
- Continuous operating temperature
- -60 °C
- PU (SPU)
- 500 (50) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-04
- eCl@ss 9.0
- 27-14-11-04
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Number of poles
- 2P
- EAN
- 4055143962315
- MPN
- 243-211
- Nominal current
- 6 A
- Nominal voltage
- 100 V
- Colour
- Multi-coloured
- Number of clamp positions
- 8
- Cable diameter
- 0.6–0.8 mm
- Suitable for solid conductors
- Yes
- AWG-range
- 20–22
- Suitable for multi-wire conductors
- No
- Suitable for flexible conductors
- No
- Transparent
- No
- With operation lever
- Yes
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017332131711
- SAP 1000198950
- Code 81068680
