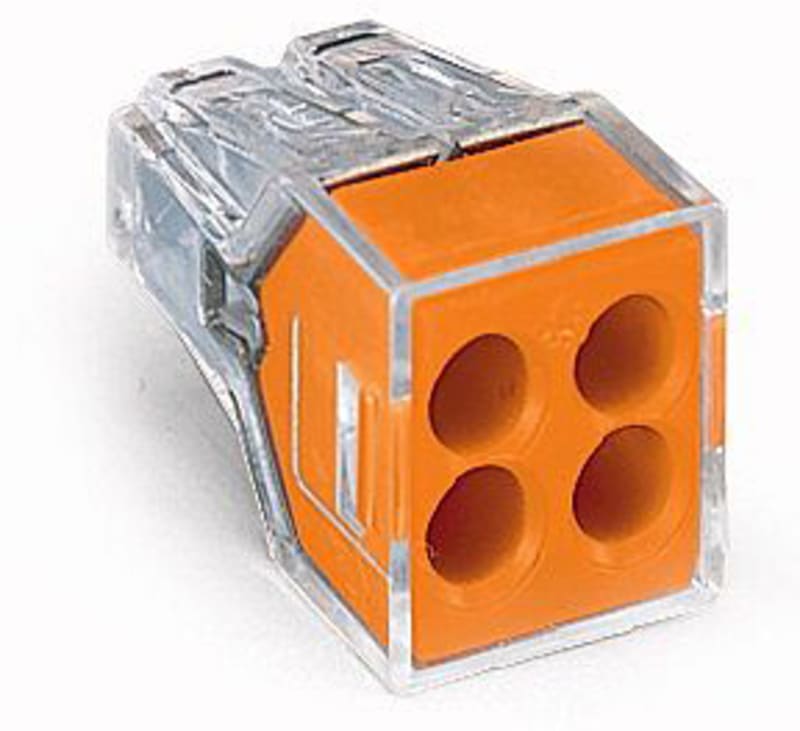

PUSH WIRE® connector for junction boxes, for solid and stranded conductors, max. 2.5 mm² (773-104)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 773-104 Manufacturer description: PUSH WIRE® connector for junction boxes; for solid and stranded conductors; max. 2.5 mm²; 4-conductor; transparent housing; orange cover; Surrounding air temperature: max 60°C; 2,50 mm²; transparent. Wagoklemme 4x2,5mm².
Technical Specifications
- Manufacturer part number (MPN)
- 773-104
- EAN / GTIN
- 4044918397629
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Clamping units
- 4
- Total number of potentials
- 1
- Width
- 13 mm / 0.512 inches
- Height
- 13.1 mm / 0.516 inches
- Depth
- 19.5 mm / 0.768 inches
- Color
- transparent
- Cover color
- orange
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact material
- Electrolytic copper (ECu)
- Contact Plating
- Tin
- Fire load
- 0.056 MJ
- Weight
- 2.5 g
- Ambient temperature (operation)
- +60 °C
- Continuous operating temperature
- 105 °C
- Product Group
- 7 (Push Wire Conn.)
- PU (SPU)
- 1000 (100) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-04
- eCl@ss 9.0
- 27-14-11-04
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 773-104
- Nominal current
- 24 A
- Nominal voltage
- 400 V
- Colour
- Colourless
- Number of clamp positions
- 4
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.75–2.5 mm²
- AWG-range
- 12–18
- Nominal cross section
- 1.5–2.5 mm²
- Suitable for multi-wire conductors
- No
- Suitable for flexible conductors
- No
- Transparent
- Yes
- With operation lever
- No
- Min. AWG-size
- 18
- Max. AWG-size
- 12
- Type of locking/unlocking
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4044918397629
- SAP 1000064481
- Code 8902362
Product Documentation
