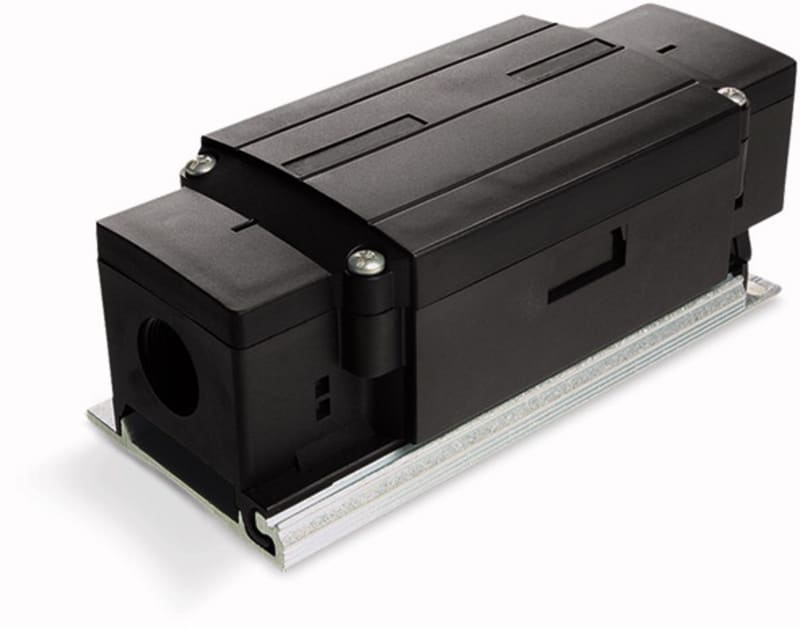

WAGO Supply Module for Flat Cable 5x16 mm² 5-Pole Black
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 895-1651 supply module for flat cable, 5-pole 16 mm² black housing rated 690 V, 76 A. Polyamide (PA66) enclosure, dimensions 85 x 90 x 200 mm, IP20 (IP65 with screw-type connection or blind plug), part of the Winsta product group.
Technical Specifications
- Manufacturer part number (MPN)
- 895-1651
- EAN / GTIN
- 4045454006389
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Clamping units
- 5
- Total number of potentials
- 5
- Width
- 85 mm / 3.346 inches
- Height
- 90 mm / 3.543 inches
- Depth
- 200 mm / 7.874 inches
- Variable coding
- No
- Marking
- plain
- Retention force of a plug-in connection
- When locked: > 80 N
- Protection type
- IP20; IP65 with screw-type connection/blind plug
- Suitable
- for flat cable 5 x 16 mm²
- Mismating protection
- Yes
- Color
- black
- Cover color
- black
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Contact material
- Copper or copper alloy; surface-treated
- Contact Plating
- Tin
- Fire load
- 11.88 MJ
- Weight
- 872.9 g
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- Product Group
- 20 (Winsta)
- PU (SPU)
- 1 pcs
- Packaging type
- box
- Country of origin
- CH
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,421
- eCl@ss 10.0
- 27-44-06-01
- eCl@ss 9.0
- 27-44-06-01
- ETIM 9.0
- EC002588
- ETIM 10.0
- EC002588
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 895-1651
- Model
- Power supply system
- Halogen free
- Yes
- Housing colour
- Black
- Type of locking
- None
- Rated current
- 76 A
- Rated voltage
- 690 V
- Number of poles
- 5
- Length
- 200 mm
- Housing material
- Polyamide (PA)
- Cable diameter
- 20–26 mm
- Mechanical coding
- No
- Degree of protection (IP)
- IP65
- Transparent
- No
- Connection round cable
- Screw connection
- Type of integrated switching
- None
- Phase pickup
- L1-L3
- Connection cross section (fine-strand)
- 2.5–16 mm²
- Max. continuous temperature resistance contact part
- 85 °C
- Max. continuous temperature resistance strain relief
- 105 °C
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4045454006389
- SAP 1200101295
- Code 81957069
