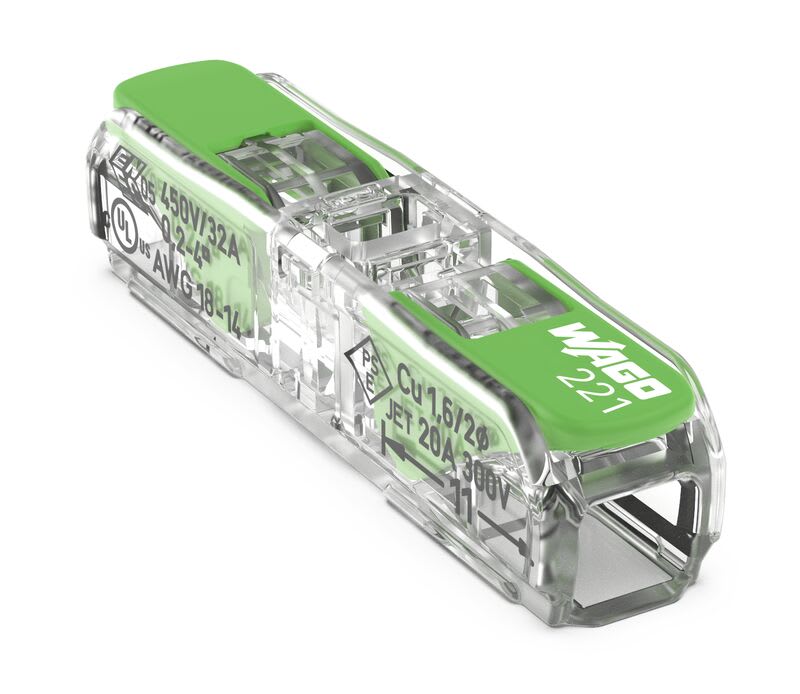

Inline splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-2421)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 221-2421 inline splicing connector with levers for all conductor types up to 4 mm² in a transparent housing with a white cover. Two-conductor configuration rated for surrounding air temperatures up to 85 °C (T85).
Technical Specifications
- Manufacturer part number (MPN)
- 221-2421
- EAN / GTIN
- 4066966613261
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Clamping units
- 2
- Total number of potentials
- 1
- Width
- 8.1 mm / 0.319 inches
- Height
- 8.9 mm / 0.35 inches
- Depth
- 35.5 mm / 1.398 inches
- Color
- transparent
- Cover color
- white
- Material group
- IIIa
- Housing material
- bio-circular PC
- Insulation material (main housing)
- Polycarbonate (PC)
- Insulation material (actuator)
- Bio-circular PBT
- Flammability class per UL94
- V2
- Fire load
- 0.06 MJ
- Actuator color
- green
- Weight of insulation material
- 0.84 g
- Weight
- 2.4 g
- Continuous operating temperature
- -60 … +105 °C
- PU (SPU)
- 600 (60) pcs
- Packaging type
- Box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 4 mm²
- Nominal current
- 32 A
- Nominal voltage
- 450 V
- Colour
- Green
- Number of clamp positions
- 2
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.2–4 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- Yes
- Transparent
- Yes
- With operation lever
- Yes
- Min. AWG-size
- 20
- Max. AWG-size
- 12
- Nominal cross section (installation side)
- 0.2–4 mm²
- Type of locking/unlocking
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966613261
- SAP 1200832005
- Code 84016452
Product Documentation
