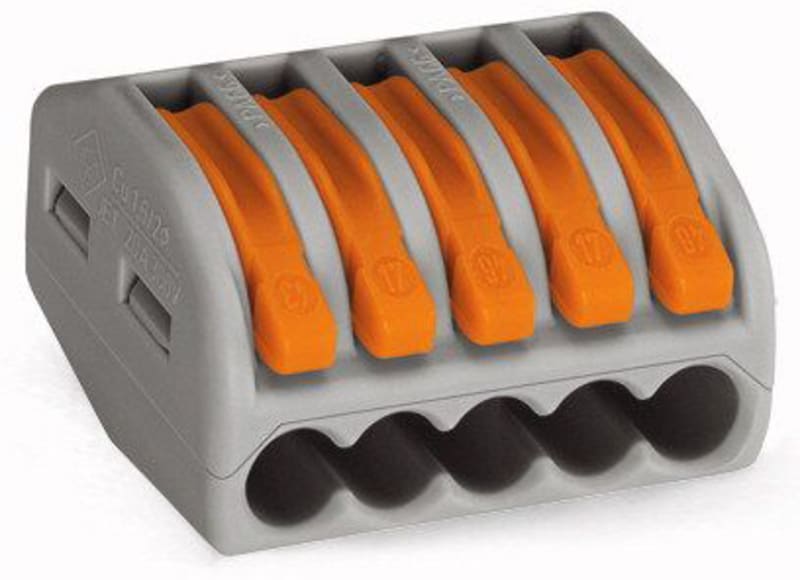

Splicing connector with levers, for all conductor types, max. 4 mm², 5-Conductor, 2,50 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 222-415 five-conductor openable splicing connector with levers for all conductor types up to 4 mm², supplied in a grey housing rated for surrounding air temperatures up to 40 °C at 2.50 mm².
Technical Specifications
- Manufacturer part number (MPN)
- 222-415
- EAN / GTIN
- 4044918793810
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Clamping units
- 5
- Total number of potentials
- 1
- Width
- 26.6 mm / 1.047 inches
- Height
- 14.5 mm / 0.571 inches
- Depth
- 20.5 mm / 0.807 inches
- Color
- gray
- Flammability class per UL94
- V0
- Fire load
- 0.114 MJ
- Actuator color
- orange
- Weight
- 6.6 g
- Ambient temperature (operation)
- +40 °C
- Continuous operating temperature
- 85 °C
- Product Group
- 7 (Push Wire Conn.)
- PU (SPU)
- 400 (40) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-04
- eCl@ss 9.0
- 27-14-11-04
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 4 mm²
- Nominal current
- 32 A
- Nominal voltage
- 400 V
- Colour
- Grey
- Number of clamp positions
- 5
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.08–2.5 mm²
- AWG-range
- 12–28
- Nominal cross section
- 0.8–4 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- Yes
- Transparent
- No
- With operation lever
- Yes
- Max. AWG-size
- 12
- Type of locking/unlocking
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4044918793810
- SAP 1000067393
- Code 8752659
