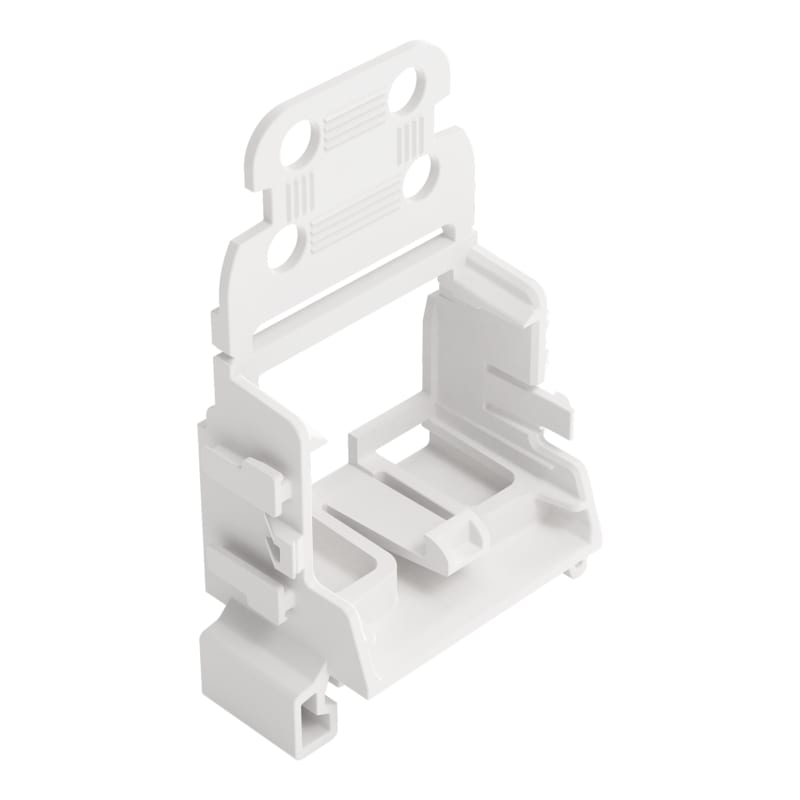

Mounting carrier with strain relief, for 10-Wire connectors, 221 Series - 4 mm², for DIN-35 rail
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 221-549 Manufacturer description: Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for DIN-35 rail; white. Holder for WAGO 221 10-way, with strain relief, DIN-35, white.
Technical Specifications
- Manufacturer part number (MPN)
- 221-549
- EAN / GTIN
- 4066966603767
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Width
- 43 mm / 1.693 inches
- Height
- 23.7 mm / 0.933 inches
- Depth from upper-edge of DIN-rail
- 57.7 mm / 2.272 inches
- Depth
- 64 mm / 2.52 inches
- Mounting type
- Snapping on | DIN-35 rail
- Suitable
- for 10-wire connectors (4 mm²)
- Color
- white
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.191 MJ
- Weight
- 7.1 g
- PU (SPU)
- 10 pcs
- Packaging type
- Box
- Country of origin
- CN
- Customs tariff number
- 39269097900
- ETIM 9.0
- EC002848
- ETIM 10.0
- EC002848
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 221-549
- Type of accessory/spare part
- Mounting foot
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4066966603767
- SAP 1200832004
- Code 84016461
Product Documentation
