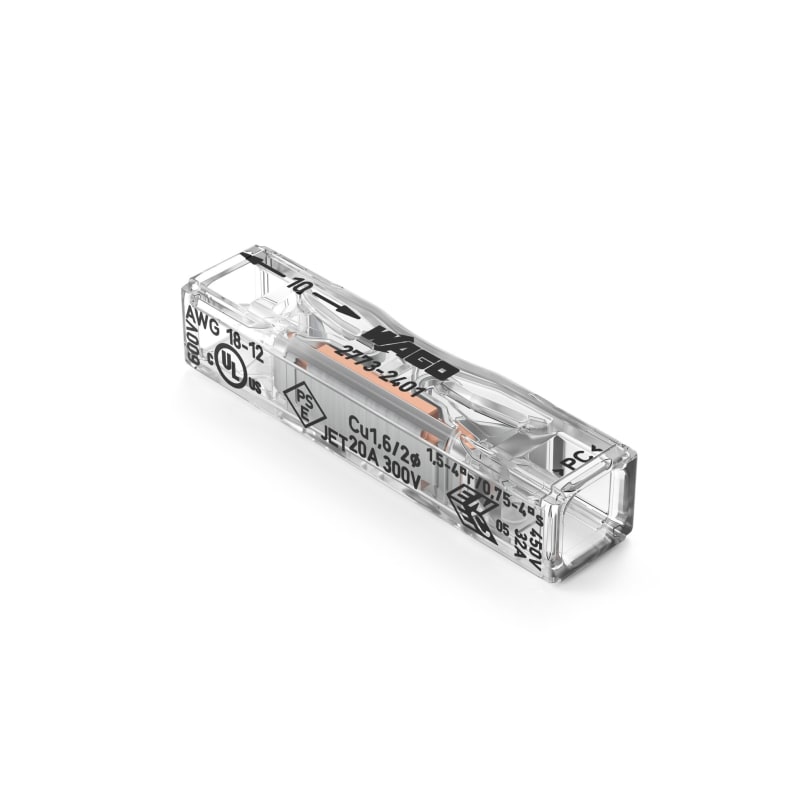

PUSH WIRE® Inline Splicing Connector, for solid and stranded conductors, max. 4 mm², 2-Conductor
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2773-2401 Manufacturer description: PUSH WIRE® Inline Splicing Connector; for solid and stranded conductors; max. 4 mm²; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent. Push-In Terminal Inline 2x4mm², transparent.
Technical Specifications
- Manufacturer part number (MPN)
- 2773-2401
- EAN / GTIN
- 4066966321630
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Clamping units
- 2
- Total number of potentials
- 1
- Width
- 6.15 mm / 0.242 inches
- Height
- 6.8 mm / 0.268 inches
- Depth
- 29.5 mm / 1.161 inches
- Color
- transparent
- Cover color
- transparent
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact material
- Electrolytic copper (ECu)
- Contact Plating
- Tin
- Fire load
- 0.025 MJ
- Weight of insulation material
- 0.8 g
- Weight
- 1.4 g
- Ambient temperature (operation)
- +85 °C
- Processing temperature
- -35 … +60 °C
- Continuous operating temperature
- 105 °C
- PU (SPU)
- 1000 (100) pcs
- Packaging type
- Box
- Country of origin
- CH
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 4 mm²
- MPN
- 2773-2401
- Nominal current
- 32 A
- Nominal voltage
- 450 V
- Colour
- Colourless
- Number of clamp positions
- 2
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 1.4–4 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- No
- Transparent
- Yes
- With operation lever
- No
- Min. AWG-size
- 12
- Max. AWG-size
- 18
- Type of locking/unlocking
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966321630
- SAP 1200681853
- Code 83147502
Product Documentation
