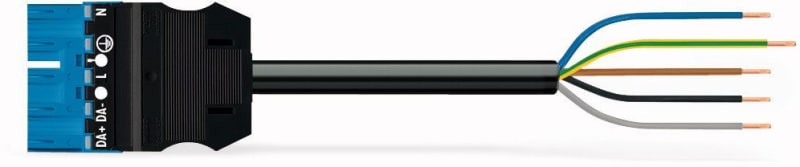

KBL3M 5X1,5 Plug/Open END
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 771-9985/206-301 Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 771-9985/206-301
- EAN / GTIN
- 4045454001698
- Sales unit
- pcs
- Halogen free
- No
- Nominal cross section conductor
- 1.5 mm²
- Cable type
- H05VV-F
- Housing colour
- Black
- Type of locking
- Separate
- Rated current
- 16 A
- Rated voltage
- 400 V
- Total length
- 3000 mm
- Number of poles
- 5
- Housing material
- Polyamide (PA)
- Colour outer sheath
- Black
- Cable diameter
- 9.3–11.6 mm
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Mechanical coding
- Yes
- Rated surge voltage
- 6 kV
- Continuity resistance
- 1 mOhm
- Contact material
- CuSn
- Degree of protection (IP)
- IP20
- Colour coding/contact insert
- Blue
- Fire load
- 25.045 kWh
- Strip length
- 9 mm
- Dismantle length
- 55 mm
- Type side 1
- Plug
- Type side 2
- Free conductor end
- Insulating piece permanent temperature-resistant
- 105 °C
- Conductor end treatment
- Ultrasonic compressed wire ends
- Cable permanent temperature-resistant to
- 70 °C
- Max. operating temperature at conductor
- 85 °C
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- RAL-number coding/contact insert
- 5015
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4045454001698
- SAP 1000094281
- Code 8587500
Product Documentation
More from WAGO
WAGO
Flat cable end cover; 5-Pole; for flat cable 16 mm²; Plastic
897-1650
WAGO
PUSH WIRE® connector for junction boxes, for solid and stranded conductors, max. 2.5 mm² (773-108)
WAGO
h-distribution connector, 5-Pole, 1 input, 2 outputs, 3 locking levers
770-993
WAGO
2-Conductor ground terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2002-1207)
WAGO

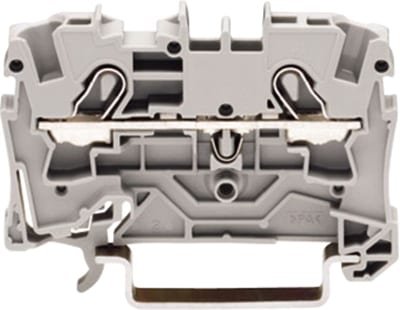

2-Conductor through terminal block, 4 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2004-1201)
WAGO
Cable 3M 3X2,5mm Black
771-9993/007-301
WAGO
Cable 5M 3X2,5 Plinth/Plug S
771-9993/007-501
WAGO

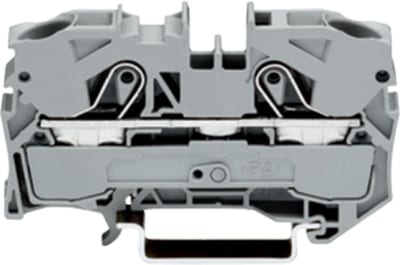

2-Conductor through terminal block, 10 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2010-1201)
