WAGO

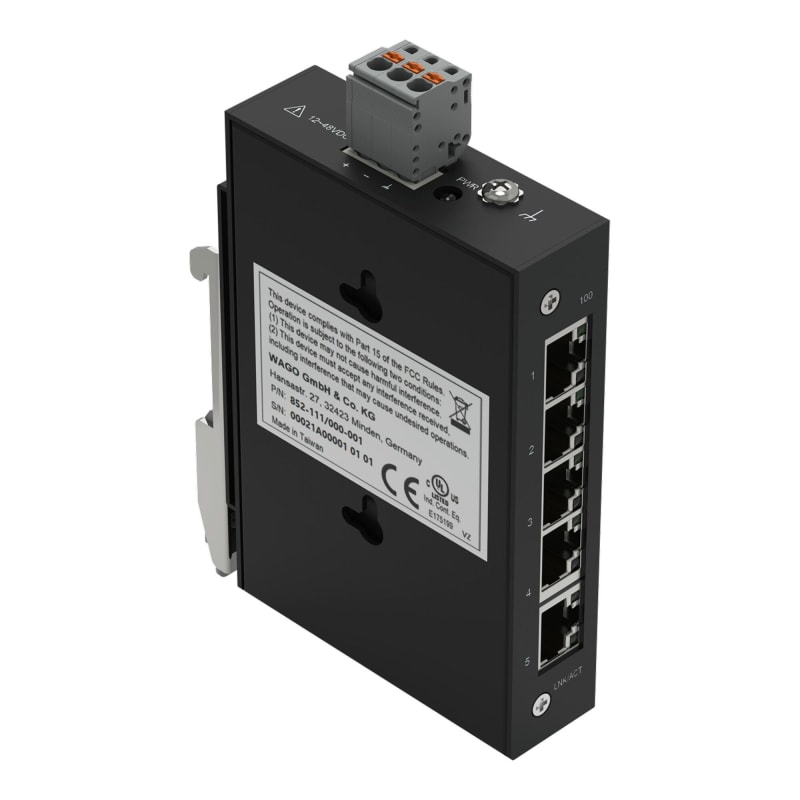

Industrial ECO-switch, 5-Port

Name: Industrial ECO-switch, 5-Port
Brand: WAGO
SKU: 852-111/000-001

Part number852-111/000-001EAN / GTIN4066966216288HS code8536.90

Control & Automation

Ethernet Switches

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Product Description

WAGO 852-111/000-001 Industrial ECO-svitsj; 5 Ports 100Base-TX; black.

Technical Specifications

Manufacturer part number (MPN): 852-111/000-001
EAN / GTIN: 4066966216288
HS code: 8536.90
Sales unit: pcs
Switching mode: Store-and-forward; non-blocking
Number of 100 Mbps ports: 5
Communication standards: IEEE 802.3 10BASE-T | IEEE 802.3u 100BASE-TX | IEEE 802.3x Flow Control
MAC table (size): 2000 addresses
Jumbo frame size: 1536 Byte
Supply voltage: 18 … 30 VDC
Power consumption (max.): 3 W
Current consumption (max.): 150 mA
ESD (contact/air discharge): 4 KV / 8 KV
Transmission rate: Copper cable: 10/100 Mbit/s
Transmission medium (communication/fieldbus): Copper cable: Cat. 5 or higher, 100 m maximum cable length
Topology: Star
Indicators: Device: LED (PWR) green: Power supply; per port: LED (100
LNK/ACT) green: Status 100 Mbps, LNK/ACT port 1 … 5
Connection technology: communication/fieldbus: Copper cable: 5 x RJ-45
Connection technology: supply: 1 x Built-in male connector: 231-433/001-000; included female connector (MCS Connectors): 231-103/026-000
Width: 23.4 mm / 0.921 inches
Height: 109.2 mm / 4.299 inches
Depth: 81 mm / 3.189 inches
Depth from upper-edge of DIN-rail: 73.8 mm / 2.906 inches
Mounting type: Wall mounting (horizontal or vertical); Dimensions (W x H x D) for wall mounting: 97 x 109.2 x 23.4 mm
Mounting (note): Standard Compass Safe Distance 0.3 Degree deflection: 1000 mm; Steering, Standby
Emergency Compass Safe Distance 1.0 Degree deflection: 650 mm
Color: black
Housing material: Sheet steel
Fire load: 5.28 MJ
Ambient temperature (operation): -40 … +70 °C (UL max. +60 °C; -25 ... +70 °C (DNV GL) (see temperature class D))
Ambient temperature (storage): -40 … +80 °C
Protection type: IP30
Pollution degree: 2 per UL 61010
Relative humidity (without condensation): 95 %
Vibration resistance: Per IEC 60068-2-6
Shock resistance: per IEC 60068-2-27
EMC immunity to interference: per EN 61000-6-2
EMC emission of interference: per EN 61000-6-4
Product Group: 27 (special components I/O)
PU (SPU): 1 pcs
Packaging type: box
Customs tariff number: 85176200000
UNSPSC: 43,222,612
eCl@ss 10.0: 19-17-01-30
eCl@ss 9.0: 19-17-01-06
ETIM 9.0: EC000734
ETIM 10.0: EC000734
ECCN: NO US CLASSIFICATION
RoHS Compliance Status: Compliant,No Exemption

Standards & Compliance

HS Code: 8536.90

Cross References

EAN 4066966216288
SAP 1200778546
Code 83939735

Product Documentation

Industrial ECO-switch, 5-Port (852-111/000-001) — Specification sheet Download

Document preview: Industrial ECO-switch, 5-Port (852-111/000-001) — Specification sheet

More from WAGO

WAGO

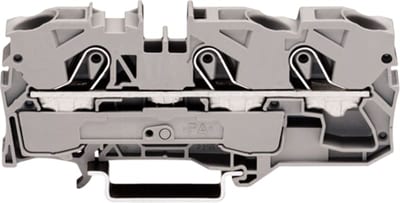

3-Conductor through terminal block, 10 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2010-1301)

WAGO

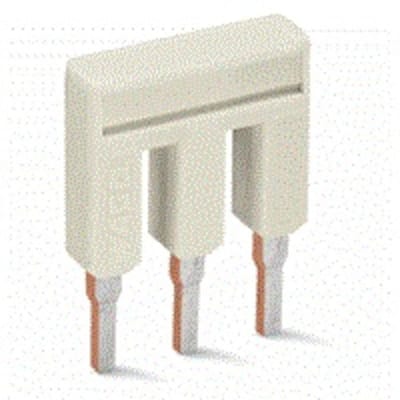

Jumper; 3-Way; insulated; light gray (2002-403)

WAGO

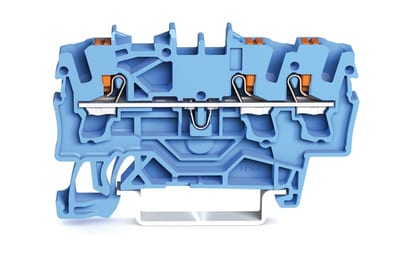

3-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2202-1304)

WAGO

KBL3M 5X1,5 Plug/Open END

771-9985/206-301

WAGO

Flat cable end cover; 5-Pole; for flat cable 16 mm²; Plastic

897-1650

WAGO

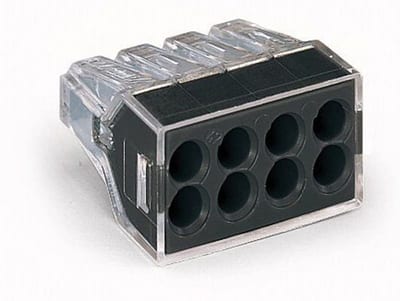

PUSH WIRE® connector for junction boxes, for solid and stranded conductors, max. 2.5 mm² (773-108)

WAGO

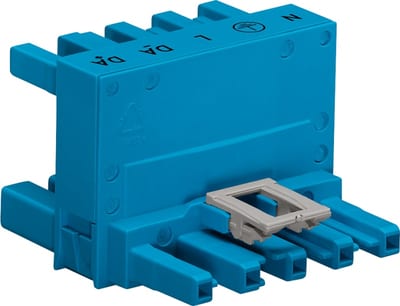

h-distribution connector, 5-Pole, 1 input, 2 outputs, 3 locking levers

770-993

WAGO

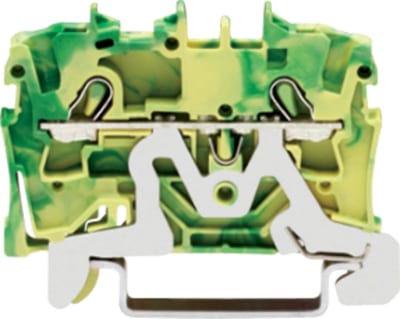

2-Conductor ground terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2002-1207)
