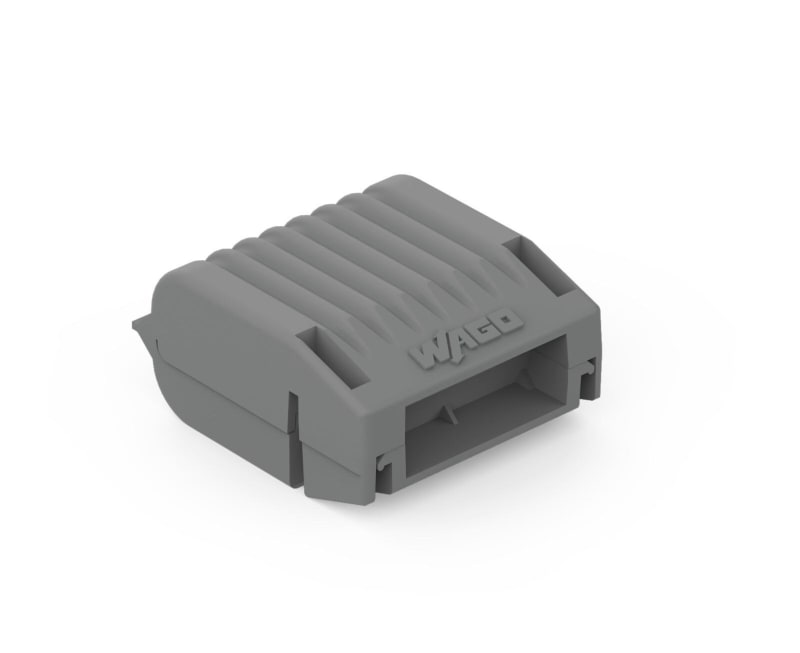

Gel box, 221, 2X73 Series, max. 4 mm² connectors, Size 1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 207-1331 Manufacturer description: Gel box; Branch; for cables; with gel; 221, 2x73 Series; max. 4 mm² connectors; without splicing connectors; Size 1; gray. Wago Gel box for 221/2773.
Technical Specifications
- Manufacturer part number (MPN)
- 207-1331
- EAN / GTIN
- 4055143997799
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Width
- 32 mm / 1.26 inches
- Height
- 17.8 mm / 0.701 inches
- Depth
- 33.6 mm / 1.323 inches
- Design
- Size 1
- Mounting type
- Flying leads
- Protection type
- IPX8
- Suitable
- for 4 mm² splicing connectors
- Color
- gray
- Housing material
- Polypropylene
- Weight
- 12 g
- Ambient temperature (operation)
- -55 … +85 °C
- Ambient temperature (storage)
- 0 … +40 °C
- PU (SPU)
- 48 (4) pcs
- Packaging type
- Box
- Country of origin
- IT
- Customs tariff number
- 39269097900
- UNSPSC
- 39,121,722
- ETIM 9.0
- EC001170
- ETIM 10.0
- EC001170
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 207-1331
- Rated voltage U0/U (Um)
- 0.6/1 (1.2) kV
- Nominal cross section conductor main cable
- 0.2–4 mm²
- Mining sector approval
- No
- Connection accessories included
- None
- Model
- Gel
- Halogen free
- Yes
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4055143997799
- SAP 1200456432
- Code 82512789
Product Documentation
