WAGO

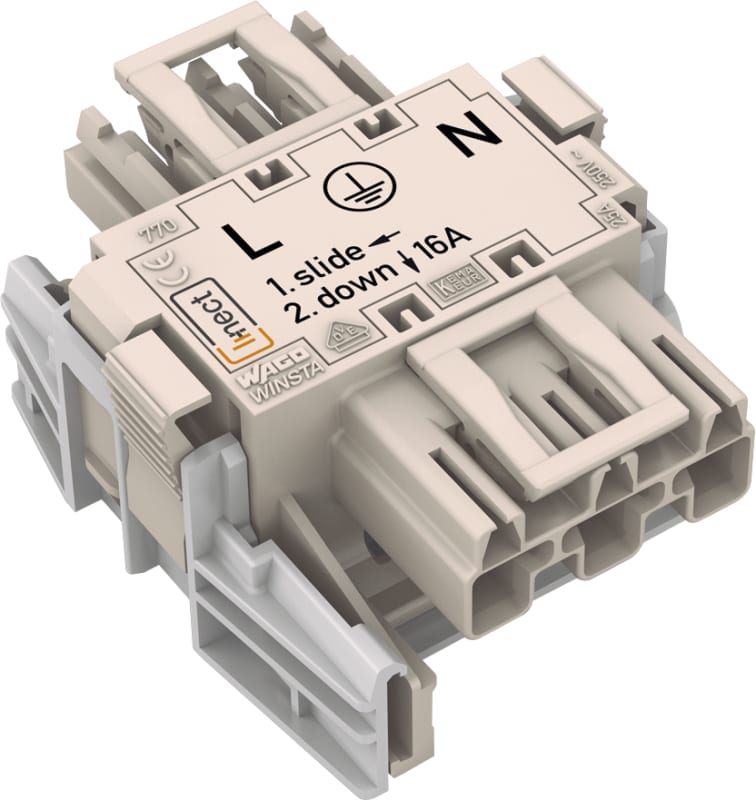

Linect® T-connector; 3-Pole; Cod. A; 1 input; 2 outputs; white
Part number770-6223EAN / GTIN4050821000389HS code8536.69
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 770-6223 Manufacturer description: Linect® T-connector; 3-pole; Cod. A; 1 input; 2 outputs; white. Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 770-6223
- EAN / GTIN
- 4050821000389
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Total number of potentials
- 3
- PE function
- Preceding PE contact
- Pin spacing
- 10 mm / 0.394 inches
- Width
- 50.5 mm / 1.988 inches
- Height
- 39.4 mm / 1.551 inches
- Depth
- 56.6 mm / 2.228 inches
- Technology
- Linect
- Use
- General mains applications
- Coding
- A
- Variable coding
- Yes
- Marking
- L ⏚ N
- Potential marking
- L ⏚ N
- Mating force of a plug-in connection
- Approx. 20 … 70 N (depending on pole number)
- Retention force of a plug-in connection
- When locked: > 80 N
- Unmating force of a plug-in connection
- Unlocked: approx. 20 … 70 N (depending on pole number)
- Number of mating cycles
- 200, without resistive load
- Type of distribution box
- Linect® T-connector
- Protection type
- IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- Contact type (pluggable connector)
- Socket/plug
- Mismating protection
- Yes
- Locking lever
- Yes
- Locking of plug-in connection
- Locking lever
- Number of locking levers
- 2
- Color
- white
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Contact material
- Copper or copper alloy; surface-treated
- Contact Plating
- Tin
- Fire load
- 0.52 MJ
- Weight
- 26 g
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- Product Group
- 20 (Winsta)
- PU (SPU)
- 25 pcs
- Packaging type
- box
- Country of origin
- PL
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,402
- eCl@ss 10.0
- 27-44-06-02
- eCl@ss 9.0
- 27-44-06-02
- ETIM 9.0
- EC002566
- ETIM 10.0
- EC002566
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 131651-65-5 | 144317-44-2 | 220133-51-7 | 220689-12-3 | 25628-08-4 | 29420-49-3 | 375-73-5 | 503155-89-3 | 507453-86-3 | 68259-10-9
- RoHS Compliance Status
- Compliant,No Exemption
- RoHS Exemption
- 6(c) | 7(a) | 7(c)-I | 7(c)-II
- SCIP notification number (Austria)
- 5966b72c-1fcb-4651-8dc3-6fbfcb292f60
- SCIP notification number (Belgium)
- 0a350488-666b-4482-8f39-2e7152894647
- SCIP notification number (Bulgaria)
- ca449f1b-c10a-4791-8f94-a8a5d5311b3a
- SCIP notification number (Czech Republic)
- 52f57e2a-1602-4374-87fe-03a48e60ba43
- SCIP notification number (Denmark)
- 752f46fd-ec18-4bc4-be62-ed181a652af4
- SCIP notification number (Finland)
- 639310bc-033e-4f8a-ad53-d4ba8df32601
- SCIP notification number (France)
- 1adde090-4b2d-45e4-aa65-77b138d766b6
- SCIP notification number (Germany)
- 675e7859-4a71-4c40-86e2-41f7a7161b81
- SCIP notification number (Hungary)
- 00bf2c98-3239-42aa-9bc6-a9699adf6ce9
- SCIP notification number (Italy)
- 4fe27c10-31be-4242-9599-3ac92162d5e8
- SCIP notification number (Netherlands)
- a476a03e-9b7a-4736-aa51-8b66d7a1f244
- SCIP notification number (Poland)
- 91b54276-745c-4dd2-83eb-64221a78ffb2
- SCIP notification number (Romania)
- d34a9c6b-42da-4204-ab7b-db471cde4b56
- SCIP notification number (Sweden)
- 78f8235e-df76-4471-9afe-0c3812b3a8b7
- MPN
- 770-6223
- Rated voltage
- 250 V
- Rated current
- 25 A
- Number of poles
- 3
- Degree of protection (IP)
- IP20
- Connection type
- Spring clamp connection
- Model
- Male
- Built-in version
- Built-in part/plug-in connection
- Insert direction
- Straight
- Connection size thread
- No thread connection
- Number of connections per pole
- 2
- Pole codification
- L, N, PE
- Mechanical coding
- Yes
- Colour coding/contact insert
- White
- Colour of the separate adaptor piece
- Without adapter piece
- Housing colour
- White
- Type of locking
- Integrated in plug-in connector
- Max. continuous temperature resistance contact part
- 85 °C
- Max. continuous temperature resistance strain relief
- 105 °C
- Housing material
- Polyamide (PA)
- Halogen free
- Yes
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Continuity resistance
- 1 mOhm
- Rated surge voltage
- 4 kV
- Length
- 56.6 mm
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4050821000389
- SAP 1000094473
- Code 8876134
Product Documentation
Document preview: Linect® T-connector; 3-Pole; Cod. A; 1 input; 2 outputs; white (770-6223) — Specification sheet
