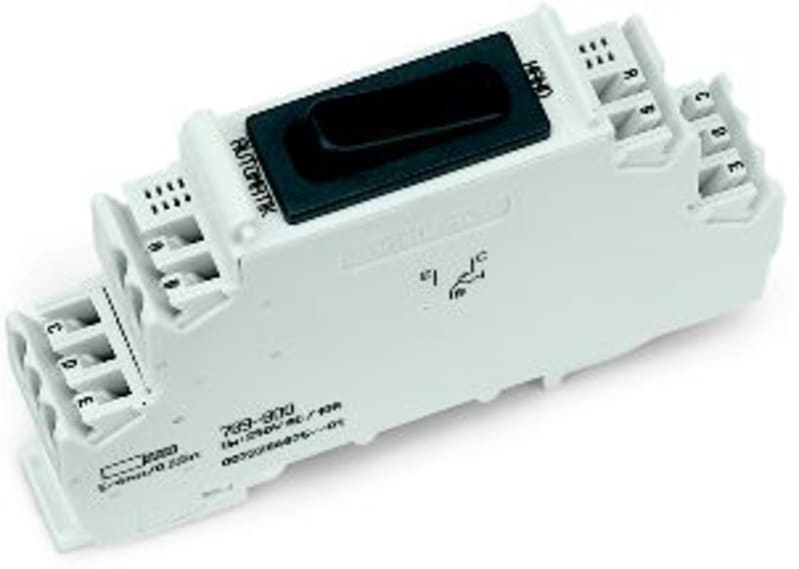

WAGO 789-802 Switching Module with 2-Pole Circuit Breaker, 250 V AC / 16 A

WAGO 789-802 is a 17.5 mm wide DIN-rail switching module with an integrated 2-pole miniature circuit breaker rated 16 A at up to 250 V AC. Inrush current tolerance is 100 A capacitive and rated impulse withstand voltage is 4 kV at pollution degree 2. Silver-alloy contacts give 10,000 electrical switching operations at nominal load and 50,000 mechanical operations. Operating temperature is -20 to +55 °C; module weight is 45.9 g. Package quantity is 10 pieces.

Manufacturer part number (MPN)

789-802

EAN / GTIN

4050821274810

HS code

8536.90

Sales unit

pcs

Package quantity

10 pcs

Operating voltage

≤ 250 VAC

Number of make/switch-on contacts

2

Switching current (resistive) max.

16 A

Inrush current (max.)

100 A (Capacitive)

Switching Voltage, Max.

250 VAC

Contact resistance

≤ 100 mΩ (12 V / 1 ADC; new condition)

Insulation resistance

≥ 100 MΩ (500 VDC; New condition)

Electrical life (NO; resistive load; 23 °C)

10 x 10³ switching operations

Mechanical life

50 x 10³ switching operations

Rated Voltage

250 V

Rated impulse withstand voltage

4 kV

Pollution degree

2

Dielectric strength (open contact) (AC, 1 min)

1.25 kVeff

Width

17.5 mm / 0.689 inches

Height

90 mm / 3.543 inches

Depth from upper-edge of DIN-rail

55 mm / 2.165 inches

Mounting type

DIN-35 rail

Housing design

DIN-rail-mount enclosure

Contact material (switch)

Ag alloy

Fire load

6.146 MJ

Weight

45.9 g

Ambient temperature (operation)

-20 … +55 °C

Ambient temperature (storage)

-40 … +80 °C

Product Group

6 (INTERFACE ELECTRONIC)

PU (SPU)

10 (1) pcs

Packaging type

box

Country of origin

DE

Customs tariff number

85365080000

UNSPSC

39,122,233

eCl@ss 10.0

27-37-16-01

eCl@ss 9.0

27-37-16-01

ETIM 9.0

EC001437

ETIM 10.0

EC001437

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Number of poles

2P

MPN

789-802

HS Code

8536.90

• EAN 4050821274810
• SAP 1000337687
• Code 8937694
