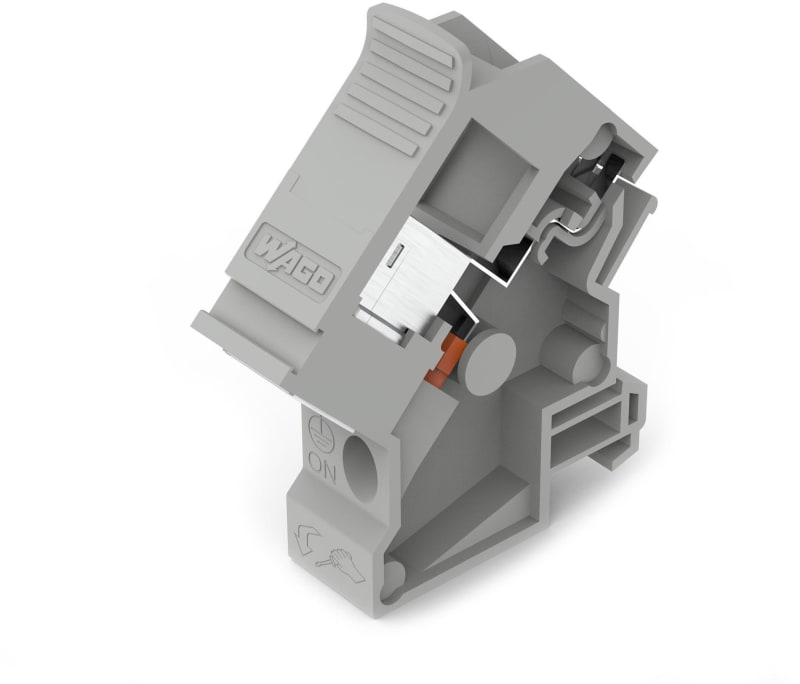

Interface module; RJ-45; IDC technology; Cat. 6A; in mounting carrier; with shield connection
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 289-197 Manufacturer description: Interface module; RJ-45; IDC technology; Cat. 6A; in mounting carrier; with shield connection. Interfacemodul for Cat6A.
Technical Specifications
- Manufacturer part number (MPN)
- 289-197
- EAN / GTIN
- 4055144029895
- Sales unit
- pcs
- Contact resistance (max.)
- 5 mΩ
- Specialty functions
- with shield connection
- Protection type
- IP20
- Mating cycles
- 750
- Connection cable
- Cat. 6A (min.)
- Width
- 18 mm / 0.709 inches
- Height
- 90 mm / 3.543 inches
- Depth from upper-edge of DIN-rail
- 59 mm / 2.323 inches
- Mounting type
- DIN-35 rail
- Housing design
- Mounting carrier
- Contact material (connector)
- CuSn
- Weight
- 39 g
- Ambient temperature (operation)
- -10 … +60 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Relative humidity
- ≤ 95 % (non-condensing)
- PU (SPU)
- 1 pcs
- Packaging type
- bag
- Country of origin
- PL
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,413
- ETIM 9.0
- EC002780
- ETIM 10.0
- EC002780
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- EAN
- 4066966083484
- MPN
- 289-197
- Type of electrical connection, field-sided
- Plug-in connection
- Type of electrical connection, control sided
- RJ45
- Number of poles
- 8
- Depth
- 90 mm
- Mounting method
- DIN rail (top hat rail) 35 mm
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4055144029895
- SAP 1200538501
- Code 82824071
Product Documentation
