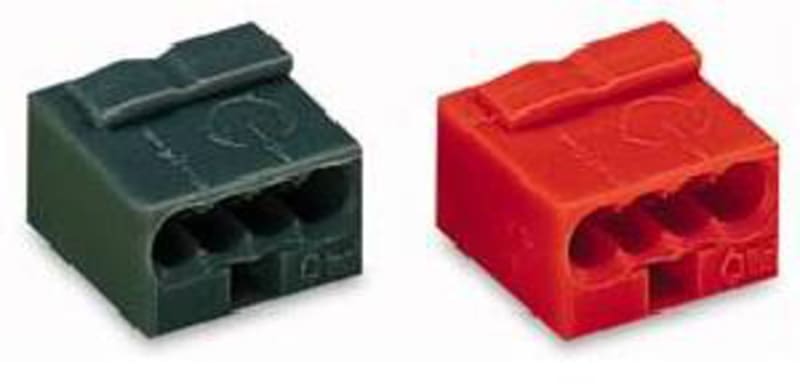

PUSH WIRE® splicing connector, for solid conductors, max. 0.8 mm Ø, 4-Conductor
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 243-204 Manufacturer description: PUSH WIRE® splicing connector; for solid conductors; max. 0.8 mm Ø; 4-conductor; dark gray housing; light gray cover; Surrounding air temperature: max 60°C; 0,80 mm²; dark gray.
Technical Specifications
- Manufacturer part number (MPN)
- 243-204 EAN / GTIN: 4017332549714 Sales unit: pcs minimum order quantity: 100 Order multiple: 100 Clamping units: 4 Total number of potentials: 1 Number of connection types: 1 Number of levels: 1 Width: 10 mm / 0.394 inches Height: 6.8 mm / 0.268 inches Depth: 10 mm / 0.394 inches Color: dark gray Cover color: light gray Fire load: 0.011 MJ Weight: 0.8 g Ambient temperature (operation): +60 °C Continuous operating temperature: 105 °C PU (SPU): 1000 (100) pcs Packaging type: box Country of origin: DE Customs tariff number: 85369010000 UNSPSC: 39,121,409 eCl@ss 10.0: 27-14-11-04 eCl@ss 9.0: 27-14-11-04 ETIM 9.0: EC000446 ETIM 10.0: EC000446 ECCN: NO US CLASSIFICATION RoHS Compliance Status: Compliant,No Exemption EAN: 4044918440585 MPN: 243-204 Nominal current: 6 A Nominal voltage: 100 V Colour: Grey Number of clamp positions: 4 Cable diameter: 0.6–0.8 mm Suitable for solid conductors: Yes AWG-range: 20–22 Nominal cross section: 0.6–0.8 mm² Suitable for multi-wire conductors: No Suitable for flexible conductors: No Transparent: No With operation lever: No Type of locking/unlocking: None
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 4017332549714
- SAP 1000198949
- Code 81001566
Product Documentation
