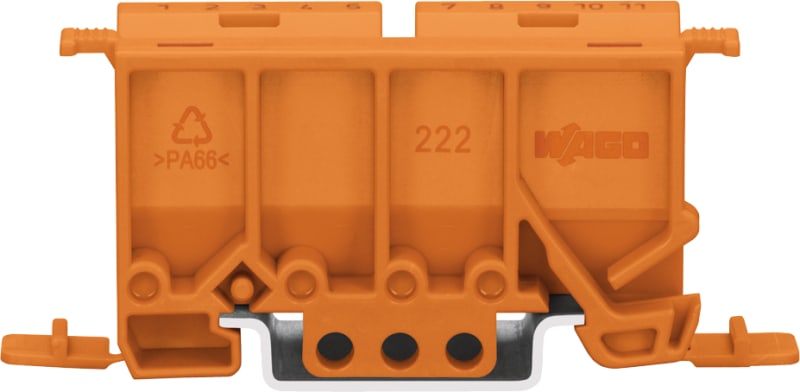

Mounting carrier; 222 Series; for DIN-35 rail mounting/screw mounting; orange
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 222-500 Manufacturer description: Mounting carrier; 222 Series; for DIN-35 rail mounting/screw mounting; orange. Holder for terminal block.
Technical Specifications
- Manufacturer part number (MPN)
- 222-500 EAN / GTIN: 4045454714765 Sales unit: pcs minimum order quantity: 10 Order multiple: 10 Width: 22 mm / 0.866 inches Height: 65.6 mm / 2.583 inches Depth from upper-edge of DIN-rail: 26 mm / 1.024 inches Depth: 32 mm / 1.26 inches Mounting type: DIN-35 rail | Screw mount Suitable: for 2-, 3- and 5-conductor splicing connectors (222 Series) Color: orange material group: I Insulation material (main housing): Polyamide (PA66) Flammability class per UL94: V0 Fire load: 0.302 MJ Weight: 11.2 g Product Group: 7 (Push Wire Conn.) PU (SPU): 50 (10) pcs Packaging type: box Country of origin: CN Customs tariff number: 39269097900 UNSPSC: 39,121,702 eCl@ss 10.0: 27-14-11-92 eCl@ss 9.0: 27-14-11-92 ETIM 9.0: EC002848 ETIM 10.0: EC002848 ECCN: NO US CLASSIFICATION RoHS Compliance Status: Compliant,No Exemption MPN: 222-500 Type of accessory/spare part: Mounting foot Accessory: Yes Spare part: No
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4045454714765
- SAP 1000002698
- Code 820134
Product Documentation
More from WAGO
WAGO
Double-deck terminal block, Blue conductor entry upper deck, for DIN-rail 35 x 15 and 35 x 7.5
2002-2203
WAGO
Jumper; 2-Way; insulated; light gray (2006-402)
WAGO
WMB marking card, 501 ... 600 (1X), stretchable 5 - 5.2 mm
793-5513
WAGO
4-Conductor through terminal block, 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5
2001-1401
WAGO
Innpluglemme inline 2X4MM² in blister
2773-2401/995-020
WAGO
2-Conductor through terminal block, 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2001-1201)
WAGO
Topjob S 3-DR. Diodeklem 2,5 mm² GREY
2002-1311/1000-410
WAGO
Mounting carrier (221-500/000-006)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 222-500?
- 222-500 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this WAGO product?
- The manufacturer part number is 222-500.
- What is the HS code for 222-500?
- The customs tariff (HS) code for 222-500 is 3926.90.
- Who manufactures 222-500?
- 222-500 is a WAGO product in the Electrical Components range.
- Is a datasheet available for 222-500?
- Yes — the 222-500 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 222-500?
- The minimum order quantity is 1.
- Is 222-500 available?
- Yes — 222-500 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
