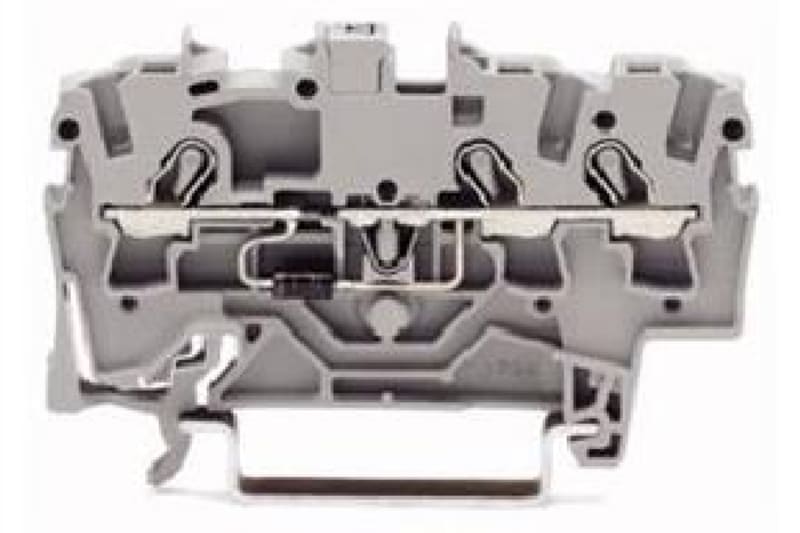

Topjob S 3-DR. Diodeklem 2,5 mm² GREY
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2002-1311/1000-410 Komponentklemme; 3-conductor; with diode 1N4007; anode, left-hand side; 2,5 mm²;.
Technical Specifications
- Manufacturer part number (MPN)
- 2002-1311/1000-410
- EAN / GTIN
- 4045454537661
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 2.5 mm²
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 1 pcs
- Packaging type
- box
- UNSPSC
- 39,121,410
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Explosion-tested version 'Ex e'
- No
- Connectable conductor cross section solid-core
- 0.25–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–4 mm²
- Rated current In
- 0.5 A
- Rated voltage
- 250 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Connection position
- Atop
- Number of clamp positions per level
- 3
- Internally connected stages
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Duroplast
- Operating temperature
- -60–105 °C
- Width
- 5.2 mm
- Width/grid dimension
- 5.2 mm
- Height
- 59.2 mm
- Depth
- 32.9 mm
- Length
- 59.2 mm
- Closing plate required
- Yes
- Colour
- Grey
- Type of component
- Diode
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4045454537661
- SAP 1000647575
- Code 8333700
Product Documentation
