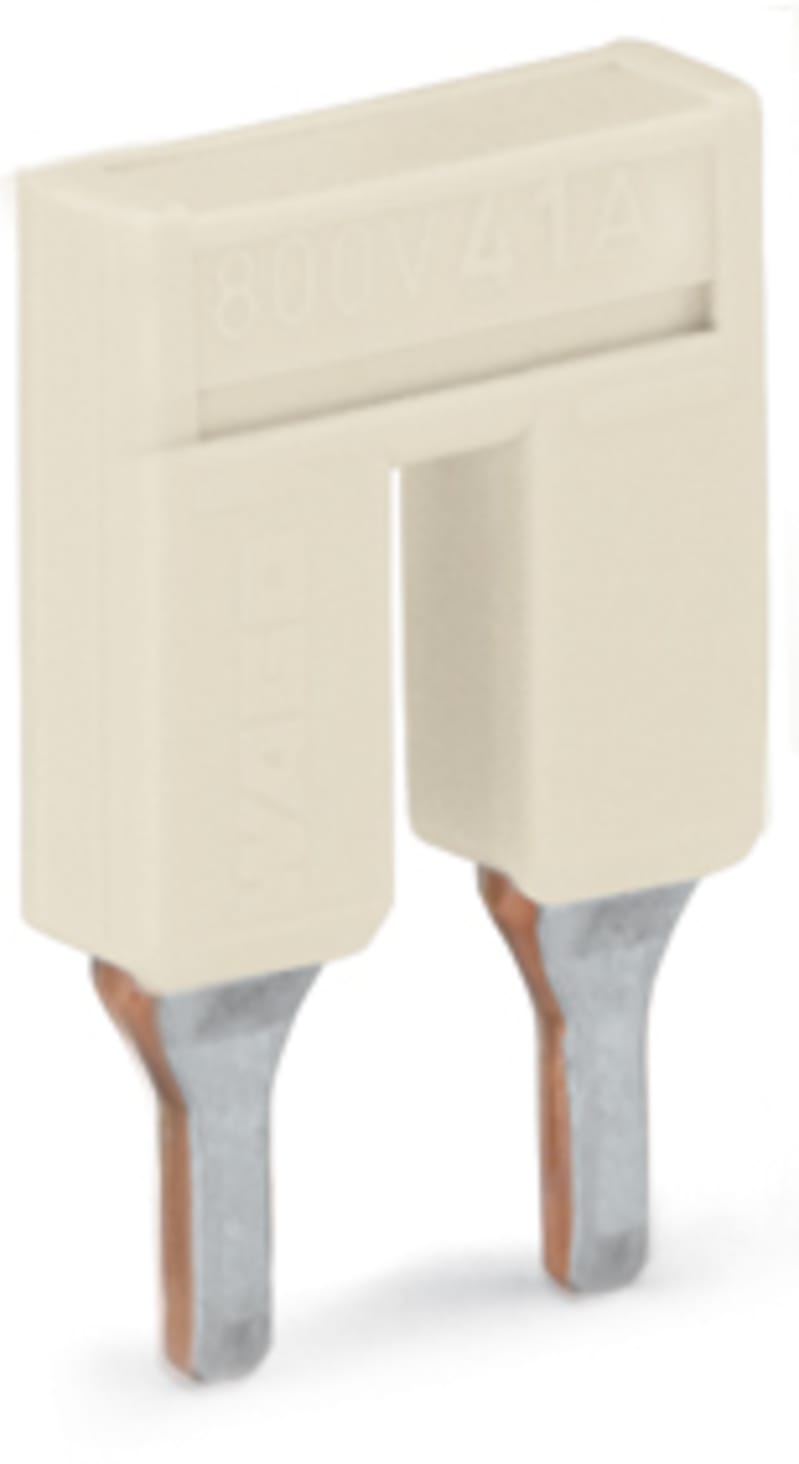

Jumper; 2-Way; insulated; light gray (2006-402)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2006-402 Manufacturer description: Jumper; 2-way; insulated; light gray. Insulated jumper link, 2-pole, 6mm², 41A. Light grey.
Technical Specifications
- Manufacturer part number (MPN)
- 2006-402
- EAN / GTIN
- 4055143701358
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Number of spacings
- 2 -fach
- Rated current
- 41 A
- Width
- 12.7 mm / 0.5 inches
- Height
- 4.1 mm / 0.161 inches
- Depth
- 19 mm / 0.748 inches
- Color
- light gray
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.007 MJ
- Weight
- 2 g
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 25 pcs
- Packaging type
- Bag
- Country of origin
- DE
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,421
- eCl@ss 10.0
- 27-14-11-40
- eCl@ss 9.0
- 27-14-11-40
- ETIM 9.0
- EC000489
- ETIM 10.0
- EC000489
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 2006-402
- Mounting method
- Pluggable
- Colour
- Grey
- Model
- Transverse connector
- Insulated
- Yes
- Rated voltage
- 800 V
- Modular spacing
- 12.7 mm
- Number of bridged clamps
- 2
- With contact protection
- Yes
- Rated current In
- 41 A
- Explosion-tested version 'Ex e'
- No
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4055143701358
- SAP 1000044951
- Code 8826308
Product Documentation
