Innpluglemme inline 2X4MM² in blister
Pricing
Request a quote
We reply within 24 hours
Product Description

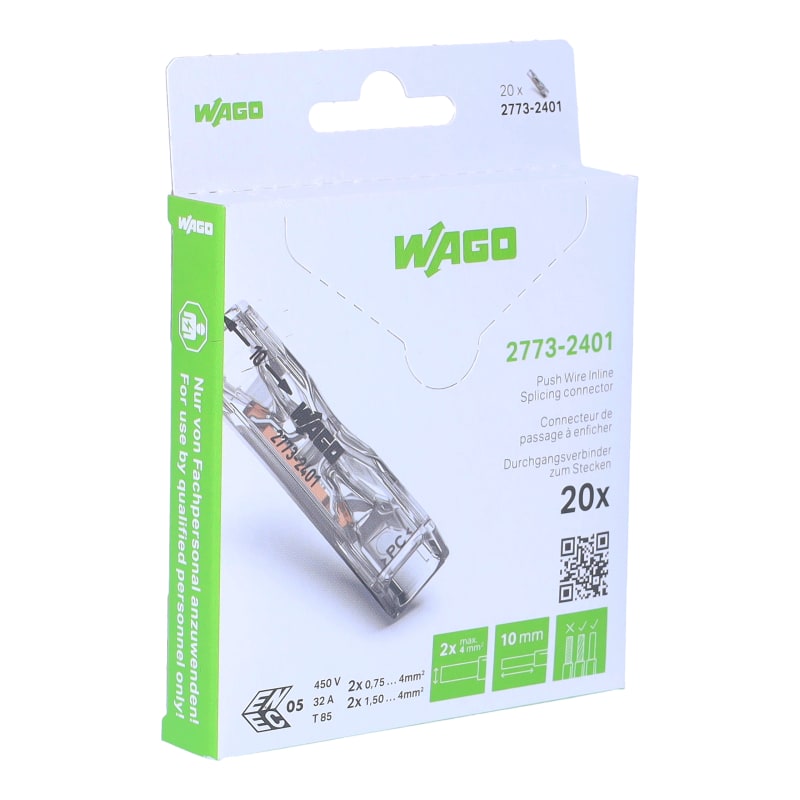

WAGO 2773-2401/995-020 Push-In Terminal Inline 2x4mm², transparent in blisterpakk ( 20 pcs ).
Technical Specifications
- Manufacturer part number (MPN)
- 2773-2401/995-020
- EAN / GTIN
- 4066966349115
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Conductor cross-section
- 4 mm²
- Clamping units
- 2
- Total number of potentials
- 1
- Width
- 6.15 mm / 0.242 inches
- Height
- 6.8 mm / 0.268 inches
- Depth
- 29.5 mm / 1.161 inches
- Color
- transparent
- Cover color
- transparent
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact Plating
- Tin
- Fire load
- 0.025 MJ
- Weight of insulation material
- 0.8 g
- Ambient temperature (operation)
- +85 °C
- Processing temperature
- -35 … +60 °C
- Continuous operating temperature
- 105 °C
- PU (SPU)
- 1000 (100) pcs
- Packaging type
- Box
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Nominal current
- 32 A
- Nominal voltage
- 450 V
- Colour
- Colourless
- Number of clamp positions
- 2
- Cable diameter
- 1.6–2 mm
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.75–4 mm²
- AWG-range
- 12–18
- Nominal cross section
- 0.75–4 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- No
- Transparent
- Yes
- With operation lever
- No
- Min. AWG-size
- 12
- Max. AWG-size
- 18
- Type of locking/unlocking
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966349115
- SAP 1200681854
- Code 83147504
Product Documentation
