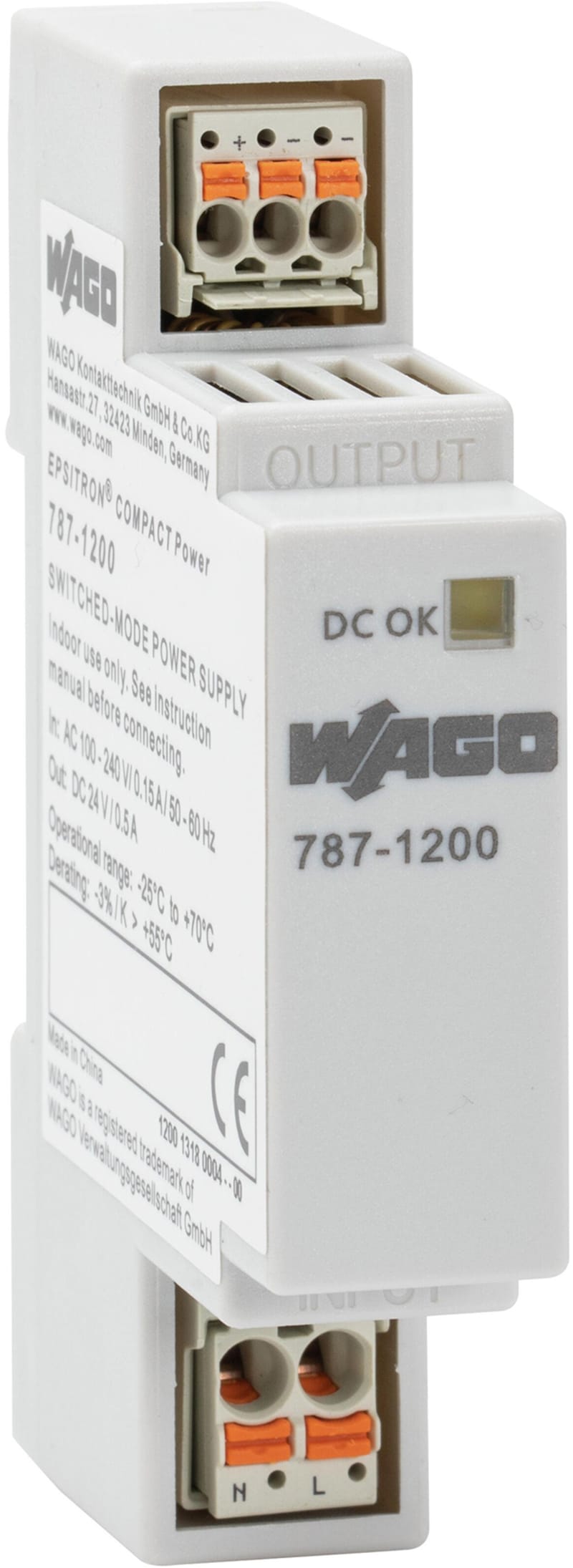

Switched-mode power supply; Compact; 1-Phase; 24 VDC output voltage; 0.5 A output current; DC-OK LED
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 787-1200 Manufacturer description: Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 0.5 A output current; DC-OK LED. WAGO Power supply 24V/0,5A.
Technical Specifications
- Manufacturer part number (MPN)
- 787-1200
- EAN / GTIN
- 4055143812184
- Sales unit
- pcs
- Isolation voltage (pri.-sec.)
- 4.242 kVDC
- Protection class
- II
- Protection type
- IP20; per EN 60529
- Reverse voltage protection
- Yes
- Resistance to reverse feed
- ≤ 31 VDC
- Overvoltage category
- II
- Pollution degree
- 2
- Transient suppression (primary)
- Yes
- Overvoltage protection; secondary
- ≤ 31 VDC (in the event of a fault)
- Short-circuit-protected
- Yes
- Open-circuit-proof
- Yes
- Parallel operation
- No
- Series operation
- Yes, for 2 devices of the same type
- MTBF
- > 700,000 h (per IEC 61709)
- Cable length (max.)
- 30 m
- Width
- 18 mm / 0.7 inches
- Height
- 90 mm / 3.543 inches
- Depth
- 55 mm / 2.165 inches
- Depth from upper-edge of DIN-rail
- 52.5 mm / 2.067 inches
- Housing design
- DIN-rail-mount enclosure
- Mounting type
- DIN-35 rail | Screw mount (back/side)
- Flammability class per UL94
- V2
- Fire load
- 0.069 MJ
- Weight
- 63 g
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Relative humidity
- 20 … 90 % (no condensation permissible)
- Derating
- -2.6 %/K (> 55 °C)
- Climatic category
- 3K3 (per EN 60721; except for low air pressure)
- Conformity marking
- CE
- Standards/specifications
- EN 61204-3 | EN 60335-1 | EN 62368 | UL 62368 | UL 508
- PU (SPU)
- 1 pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85044083900
- UNSPSC
- 39,121,004
- eCl@ss 10.0
- 27-04-07-01
- eCl@ss 9.0
- 27-04-07-01
- ETIM 9.0
- EC002540
- ETIM 10.0
- EC002540
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- SCIP notification number (Bulgaria)
- d77ec3ad-d4ea-40c4-987e-5ae1218cbb93
- SCIP notification number (Czech Republic)
- 0a095fbc-0aaf-4376-9f91-7363a8eac7f7
- MPN
- 787-1200
- Voltage type (supply voltage)
- AC/DC
- Max. output current 1
- 0.5 A
- Max. output current 2
- 0.5 A
- Max. output current 3
- 0.5 A
- Secondary voltage adjustable
- No
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 0.5 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 90–264 V
- Rated supply voltage AC 60 Hz
- 90–264 V
- Output voltage stabilized
- No
- Power consumption
- 0.27 VA
- Power output
- 12 W
- Stabilized
- Yes
- Type of electric connection
- Spring clamp connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Direct mounting possible
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055143812184
- SAP 1200549152
- Code 82881266
Product Documentation
More from WAGO
WAGO

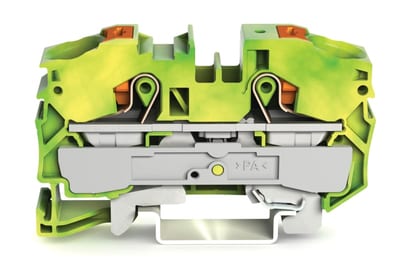

2-Conductor ground terminal block, 16 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2216-1207)
WAGO

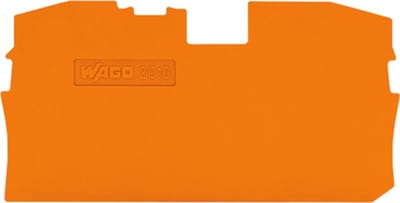

End and intermediate plate; 1 mm thick; orange (2010-1292)
