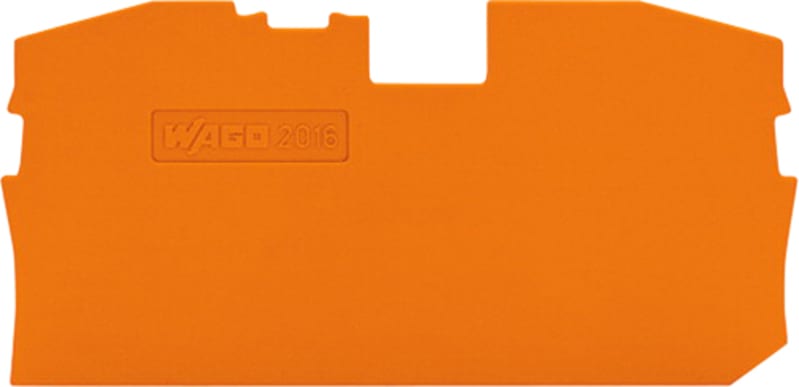

End and intermediate plate; 1 mm thick; orange (2016-1292)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2016-1292 Manufacturer description: End and intermediate plate; 1 mm thick; orange. End Plate 2 conductor, Orange, 1mm thick.
Technical Specifications
- Manufacturer part number (MPN)
- 2016-1292
- EAN / GTIN
- 4044918121828
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Width
- 1 mm / 0.039 inches
- Height
- 69.4 mm / 2.732 inches
- Depth
- 33.5 mm / 1.319 inches
- Mounting type
- snap-on type
- Color
- orange
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.066 MJ
- Weight
- 2.4 g
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 100 (25) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85389099990
- UNSPSC
- 39,121,702
- eCl@ss 10.0
- 27-14-11-33
- eCl@ss 9.0
- 27-14-11-33
- ETIM 9.0
- EC000886
- ETIM 10.0
- EC000886
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 2016-1292
- Colour
- Orange
- Thickness
- 1 mm
- Snap in
- Yes
- End plate model
- Yes
- Partition model
- Yes
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4044918121828
- SAP 1000028608
- Code 8209638
Product Documentation
More from WAGO
WAGO
Distribution terminal block, 1 x 6 mm² / 6 x 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2006-8034)
WAGO
Switched-mode power supply; Compact; 1-Phase; 24 VDC output voltage; 0.5 A output current; DC-OK LED
787-1200
WAGO
2-Conductor ground terminal block, 16 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2216-1207)
WAGO
End and intermediate plate; 1 mm thick; orange (2010-1292)
WAGO
WAGO 789-802 Switching Module with 2-Pole Circuit Breaker, 250 V AC / 16 A
WAGO
4-Conductor through terminal block, 4 mm², for DIN-rail 35 x 15 and 35 x 7.5
2004-1401
WAGO
Jumper; for jumper slot; 4-Way; insulated; light gray
859-404
WAGO
Interface module; RJ-45; IDC technology; Cat. 6A; in mounting carrier; with shield connection
289-197
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2016-1292?
- 2016-1292 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this WAGO product?
- The manufacturer part number is 2016-1292.
- What is the HS code for 2016-1292?
- The customs tariff (HS) code for 2016-1292 is 8538.90.
- Who manufactures 2016-1292?
- 2016-1292 is a WAGO product in the Electrical Components range.
- Is a datasheet available for 2016-1292?
- Yes — the 2016-1292 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2016-1292?
- The minimum order quantity is 1.
- Is 2016-1292 available?
- Yes — 2016-1292 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
