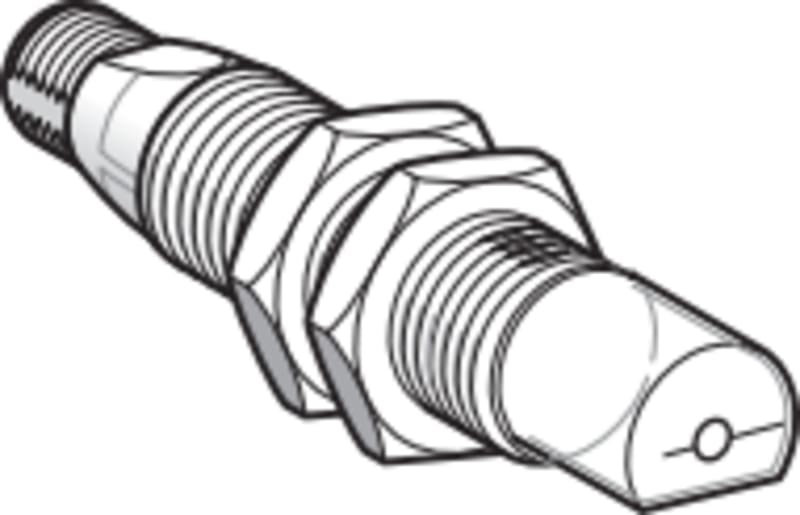

Telemecanique XUB4BNAWM12 Photoelectric Sensor, Diffuse, Metal, 90° Head, M12 connector

Telemecanique OsiSense XUB4BNAWM12 photoelectric sensor, diffuse, Ø18 mm (M18), metal housing, 90° head, switching output, M12 connector.

Manufacturer part number (MPN)

XUB4BNAWM12 EAN / GTIN: 3666916036372 Sales unit: pcs Package quantity: 22 pcs Output type: NPN Contact configuration: NO Voltage type: AC/DC Max. output current: 100 mA Housing material: Metal Suitable for safety functions: No Ambient temperature: -25–55 °C With time function: No Switching frequency: 500 Hz Number of semiconductor outputs with signalling function: 1 Number of protected semiconductor outputs: 1 Type of electric connection: Connector M12 Type of switching output: NPN/NPN Type of switch function: Normally open contact (NO) Rated control supply voltage DC: 12–24 V Operation agent-safety class: Safety class 0 Explosion safety category for gas: None Explosion safety category for dust: None Construction type housing: Cylinder, screw-thread Laser protection class: None Type of light: Infrared light Max. output current at protected output: 100 mA Min. reflector distance: 0.3 mm With monitoring function downstream switching devices: No With restart blockage: No Response time: 1 ms Transmission range of the safety field: 3 m Type of safety according to IEC 61496-1: 1 Pre failure notice: No material of optical surface: Plastic Degree of protection (IP): IP67K Analogue output 0 V ... 10 V: No Analogue output 0 mA ... 20 mA: No Analogue output -10 V ... +10 V: No Analogue output 4 mA ... 20 mA: No Diameter sensor: 18 mm With communication interface analogue: No With communication interface AS-Interface: No With communication interface CANOpen: No With communication interface DeviceNet: No With communication interface Ethernet: No With communication interface INTERBUS: No With communication interface PROFIBUS: No With communication interface RS-232: No With communication interface RS-422: No With communication interface RS-485: No With communication interface SSD: No With communication interface SSI: No Length of sensor: 76 mm Max. switching distance: 150 mm With reflector: No With other analogue output: No Sensing mode: Light switching Country of origin: France

HS Code

8536.50

• EAN 3666916036372
• SAP 1000066563
• Code 8916144
