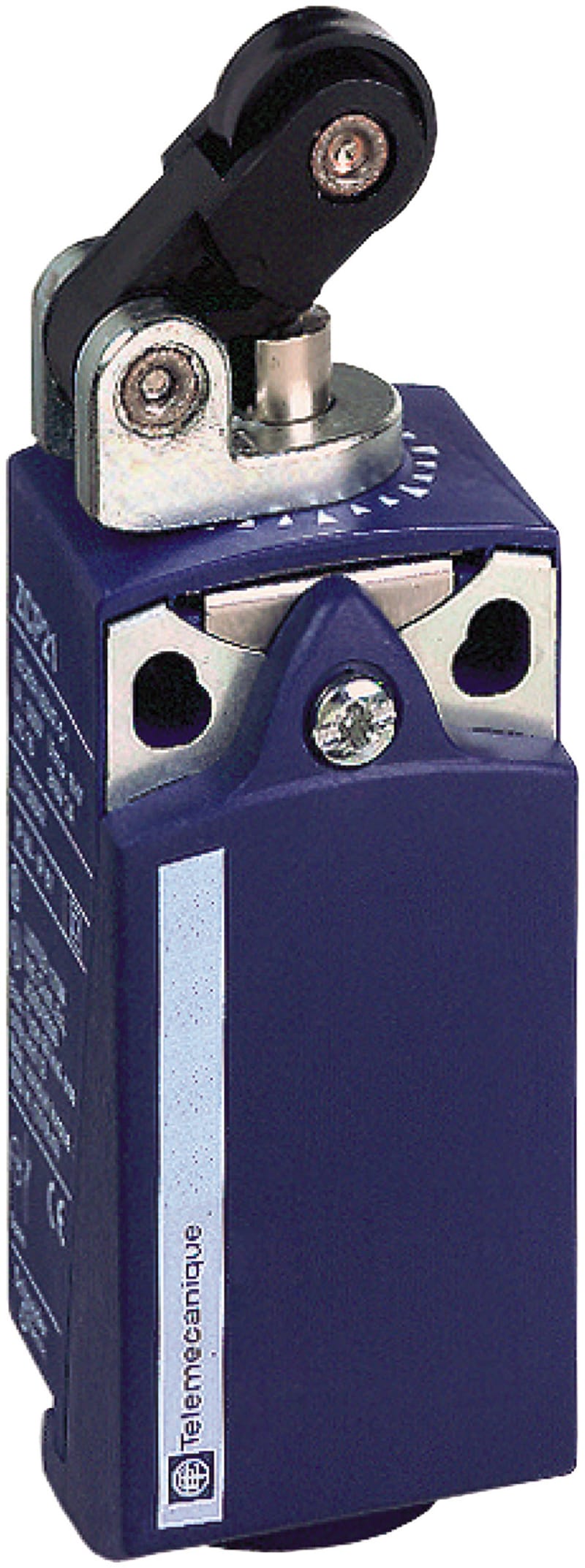

Telemecanique XCKP limit switch, plastic body, thermoplastic roller lever plunger head, horizontal actuation, 1 NC + 1 NO, slow action, spring return, Pg 11 cable entry, IP66/IP67 XCKP2521G11

Telemecanique XCKP2521G11 position (limit) switch from the XC Standard range, plastic body, with a thermoplastic roller lever plunger head operated by lateral (horizontal) approach. 1 NC + 1 NO contact block, slow action, with positive opening on the NC contact. Spring return: the head resets itself when the actuator withdraws. One Pg 11 cable entry. Protection IP66/IP67.

Manufacturer part number (MPN)

XCKP2521G11

EAN / GTIN

3666916093658

HS code

8536.90

Sales unit

pcs

Package quantity

77 pcs

Rated operation current Ie at AC-15, 230 V

3 A

Rated operation current Ie at DC-13, 230 V

0.27 A

Housing material

Plastic

Suitable for safety functions

No

With status indication

No

Type of interface for safety communication

None

Type of electric connection

Cable entry PG

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP66/IP67

Forced opening

No

Type of control element

Roller lever

Type of interface

None

Output electronic

No

Width sensor

31 mm

Height of sensor

65 mm

Length of sensor

30 mm

Switching function latching

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

Indonesia

HS Code

8536.90

• EAN 3666916093658
• SAP 1000017377
• Code 8145263
