Telemecanique XUSL2E30H046NWH Safety Light Curtain Type 2, 30 mm resolution, hand detection, 460 mm protected height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL2E30H046NWH type 2 safety light curtain, 30 mm resolution, hand detection, 460 mm protected height.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL2E30H046NWH
- EAN / GTIN
- 3666916028872
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 1
- Width sensor
- 75 mm
- Height of sensor
- 620 mm
- Length of sensor
- 76 mm
- Detection capability for test bodies
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -25–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 8 ms
- Resolution of the light curtain
- 30 mm
- Reduced resolution
- No
- Transmission range of the safety field
- 10 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 460 mm
- Type of safety according to IEC 61496-1
- 2
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916028872
- SAP 1000651977
- Code 8458242
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKP2102G11 Limit Switch, Metal Roller Plunger, 1 NO + 1 NC, PG11 entry
Telemecanique

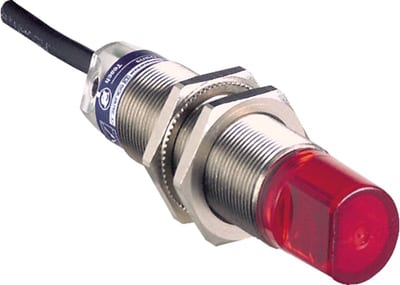

Telemecanique XUB5BPAWL2 Photoelectric Sensor M18, Metal, PNP, 2 m cable
Telemecanique

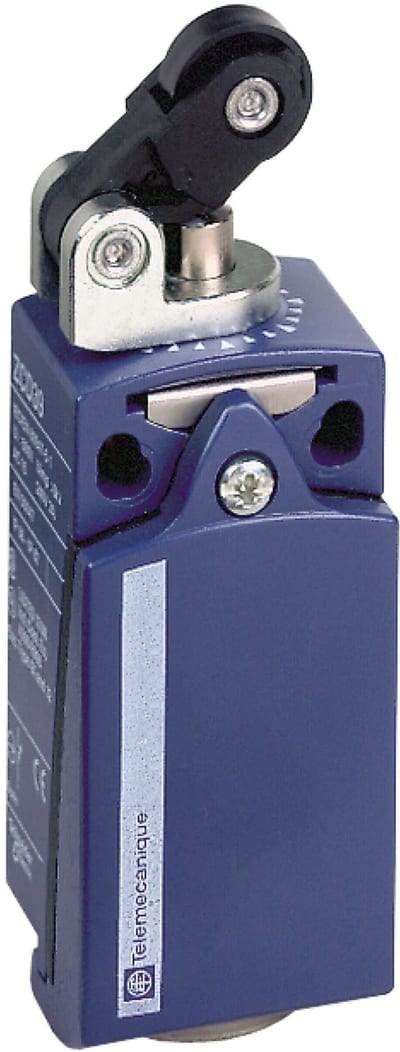

Telemecanique XCKD2121G11 Limit Switch, Roller Lever Arm, Plastic Body, 1 NO + 1 NC, PG11 entry
Telemecanique

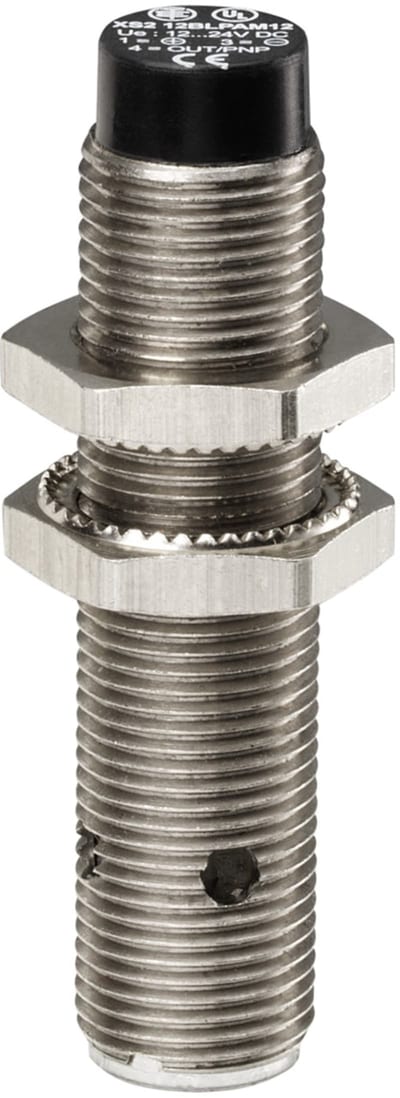

V Giveree M12 PNP NO 24VDC M12
XS212BLPAM12
Telemecanique

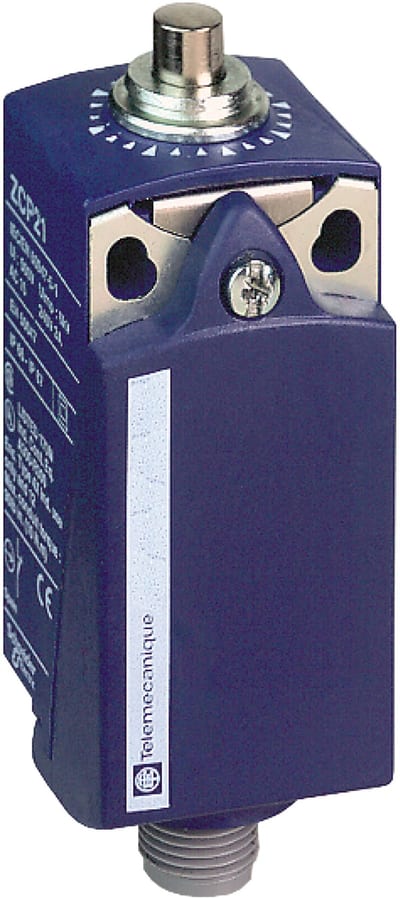

Telemecanique XCKP2110M12 Limit Switch, Metal Plunger, M12 connector
