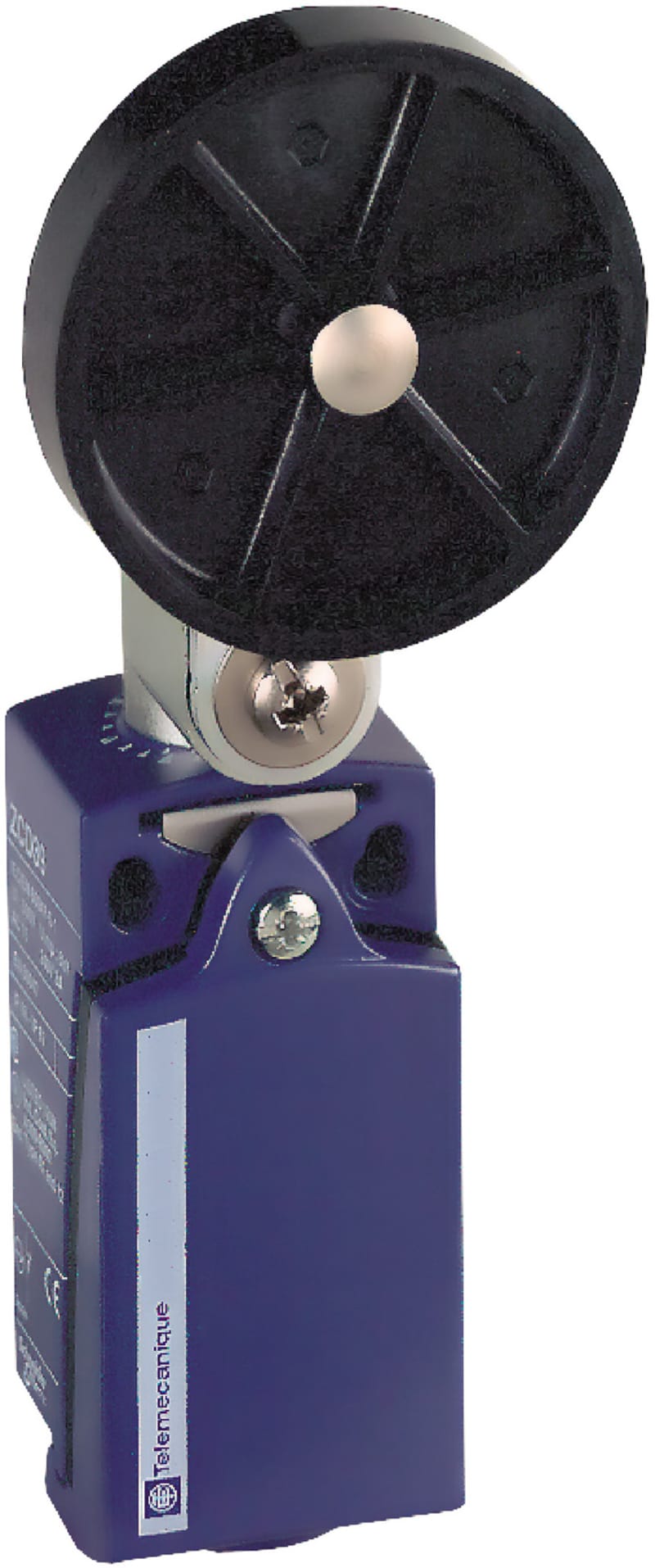

Telemecanique XCKD2539P16 Limit Switch, Ø50 Roller Lever, 1 NO/1 NC, M16 Entry

Telemecanique XCKD2539P16 is a metal-housed limit switch with a Ø50 rubber roller lever and forced-opening operation. Contact configuration is 1 normally open and 1 normally closed, rated 3 A at AC-15 230 V and 0.27 A at DC-13 230 V. Protection is IP66/IP67 with an M16 metrical cable entry, operating from -25 to +70 degrees C.

Manufacturer part number (MPN)

XCKD2539P16

EAN / GTIN

3666916094914

HS code

8536.90

Sales unit

pcs

Package quantity

22 pcs

Rated operation current Ie at AC-15, 230 V

3 A

Rated operation current Ie at DC-13, 230 V

0.27 A

Housing material

Metal

Suitable for safety functions

No

With status indication

No

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP66/IP67

Forced opening

Yes

Type of control element

Roller lever

Type of interface

None

Output electronic

No

Width sensor

31 mm

Height of sensor

65 mm

Length of sensor

30 mm

Switching function latching

No

Ambient temperature during operating

-25–70 °C

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

France

HS Code

8536.90
