Telemecanique ZCKJ1H7 Limit Switch Body, Metal, 1NO/NC, Snap-action
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKJ1H7 limit switch body (contact block), metal housing, 1NO/NC snap-action contacts; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKJ1H7
- EAN / GTIN
- 3666916092163
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Contact configuration
- 1 NO / NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 40 mm
- Height of sensor
- 77 mm
- Length of sensor
- 44 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916092163
- SAP 1000341935
- Code 8998476
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS4P30KP340 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, PNP or NPN, programmable, NO or NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XSAV12801TF Rotation Monitor (Under-Speed Detector) M30, Low Temperature
Telemecanique
Telemecanique OsiSense XS518BLPAL2 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique XZCP1564L10 Sensor Cable, M12 male straight, 5-pin, 10 m
Telemecanique
Telemecanique XZCPA0941L5 Sensor Cable, M8 female straight, 4-pin, PVC, 5 m
Telemecanique
Telemecanique XS508BSCBL2 Inductive Proximity Sensor, M8, Flush, Sn 1.5mm, M8 connector
Telemecanique
Telemecanique ZB6DE1 Illuminated Pushbutton Head, White, for LED Module, Harmony XB6
Telemecanique

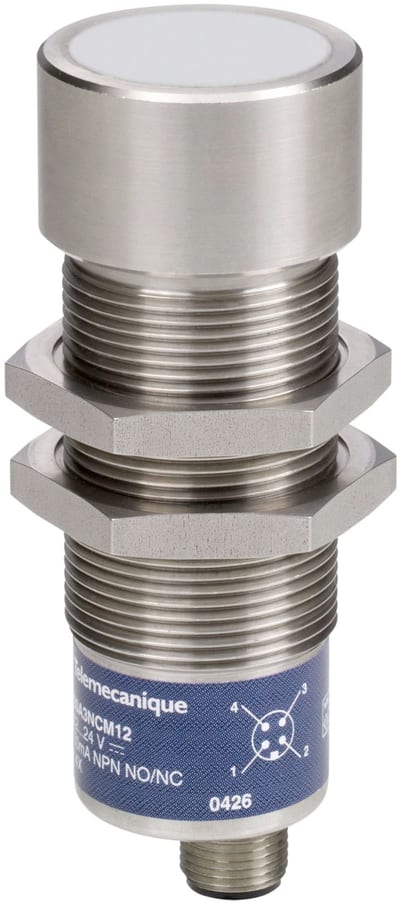

Telemecanique XX630S1NCM12 Ultrasonic Sensor, Sn 1 m, NPN, M12 connector
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZCKJ1H7?
- ZCKJ1H7 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZCKJ1H7.
- What is the HS code for ZCKJ1H7?
- The customs tariff (HS) code for ZCKJ1H7 is 8536.90.
- Who manufactures ZCKJ1H7?
- ZCKJ1H7 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for ZCKJ1H7?
- Yes — the ZCKJ1H7 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZCKJ1H7?
- The minimum order quantity is 1.
- Is ZCKJ1H7 available?
- Yes — ZCKJ1H7 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
