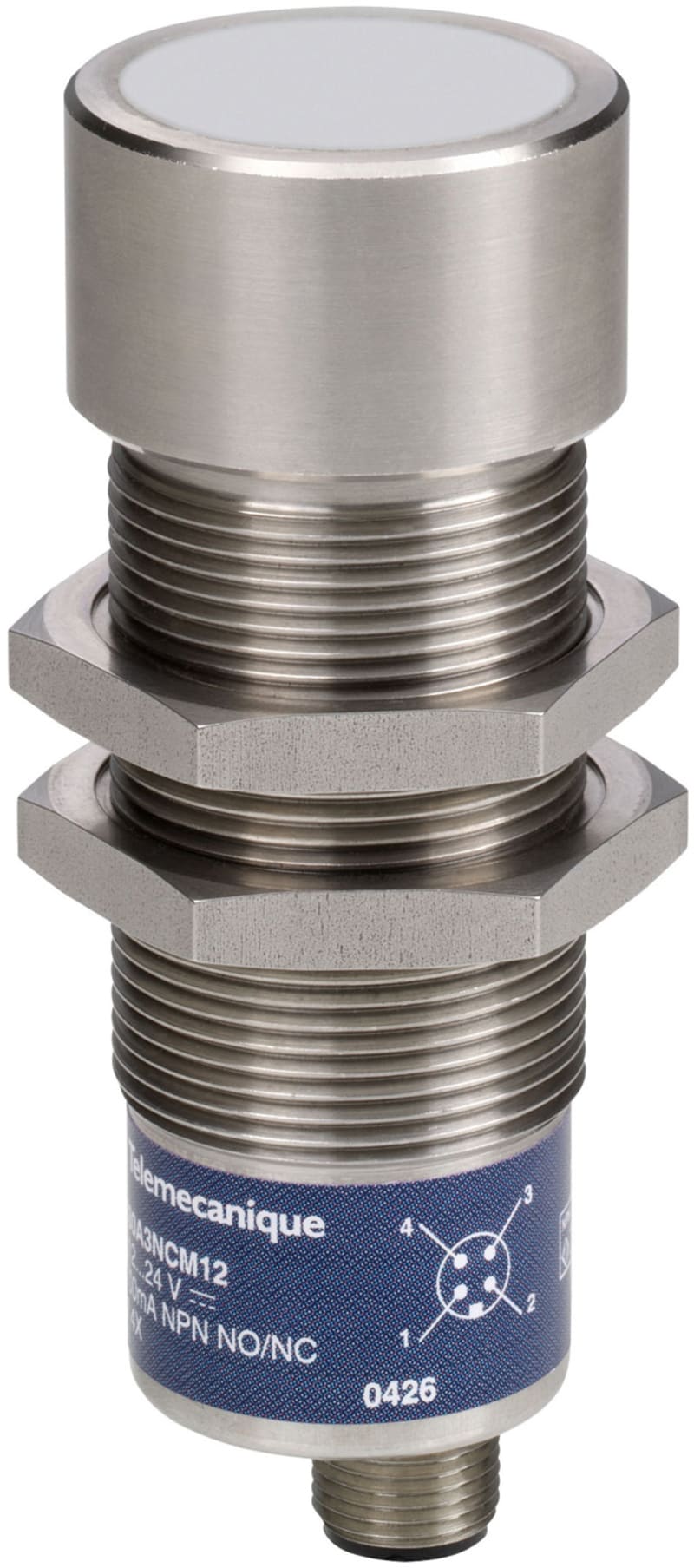

Telemecanique XX630S1NCM12 Ultrasonic Sensor, Sn 1 m, NPN, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XX630S1NCM12 OsiSense XX ultrasonic proximity sensor, Sn 1 m, NPN output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XX630S1NCM12
- EAN / GTIN
- 3666916079805
- Sales unit
- pcs
- Diameter
- 30 mm
- Output type
- NPN
- Nominal sensing distance Sn
- 1 m
- Voltage type
- AC/DC
- Max. output current
- 100 mA
- Housing material
- Stainless steel
- Ambient temperature
- 0–60 °C
- Switching frequency
- 10 Hz
- Type of electric connection
- Connector M12
- Type of switching output
- NPN/NPN
- Blind zone
- 51 mm
- Setting procedure
- Teach-In
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 50 mA
- Relative linearity deflection
- 0.9 %
- Relative repeat accuracy
- 0.9 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 35 mm
- Diameter sensor
- 30 mm
- Height of sensor
- 35 mm
- Length of sensor
- 85 mm
- Adjustable distance
- 51–991 mm
- Measuring range length
- 51–991 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 9031.80
Cross References
- EAN 3666916079805
- SAP 1000257263
- Code 81143364
Product Documentation
