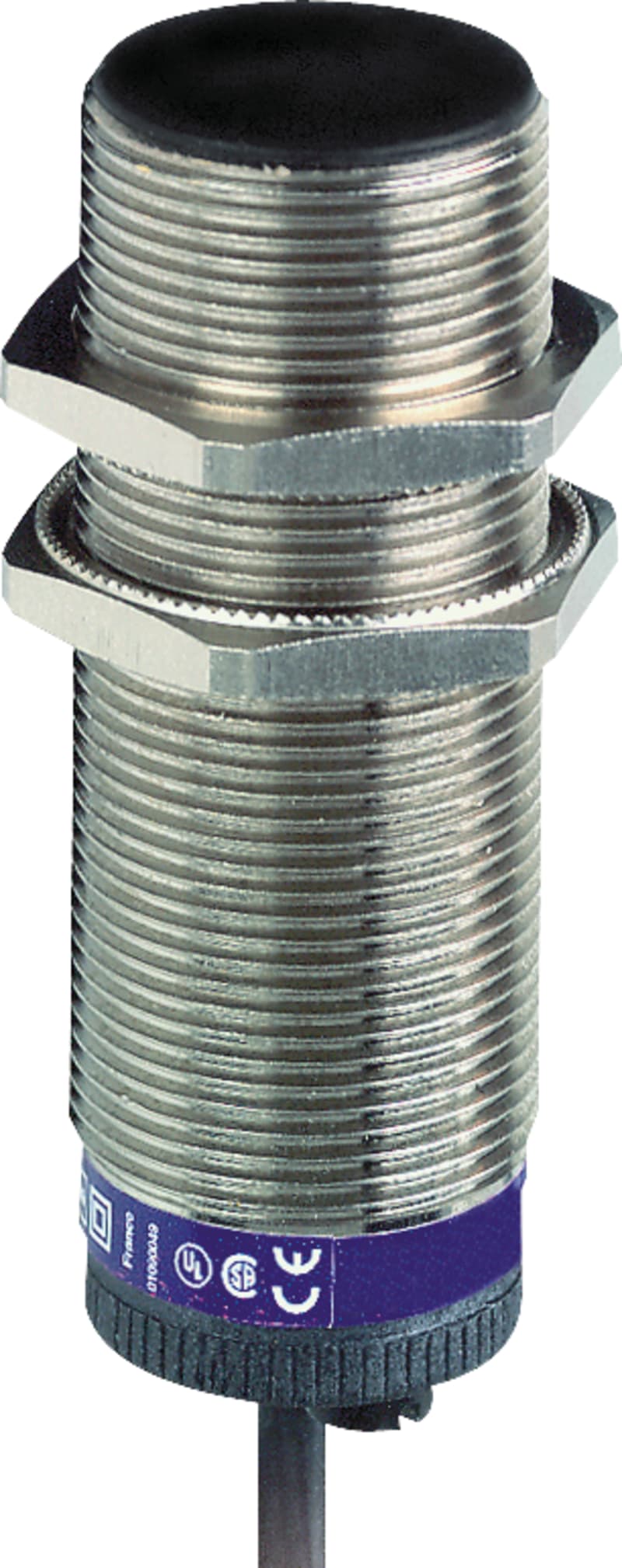

Telemecanique XSAV12373TF Rotation Monitor (Under-Speed Detector) M30, Low Temperature
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XSAV12373TF inductive rotation monitor (under-speed detector), M30 cylindrical body, PNP output, low-temperature version, screw terminals.
Technical Specifications
- Manufacturer part number (MPN)
- XSAV12373TF
- EAN / GTIN
- 3666916009154
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Height of sensor
- 30 mm
- Length of sensor
- 81 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 10 mm
- Suitable for safety functions
- No
- Type of switching output
- PNP
- Type of electric connection
- Screw connection
- Number of semiconductor outputs with signalling function
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Special construction
- Cascadable
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 100 mA
- Voltage type
- AC/DC
- Switching frequency
- 10 Hz
- With monitoring function downstream switching devices
- No
- Housing material
- Plastic
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916009154
- SAP 1000473091
- Code 8961923
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XS130B3NAM12 Inductive Proximity Sensor Ø30 mm, Threaded, NPN NO, M12 connector
Telemecanique
Telemecanique XUB1BPAWL2 Photoelectric Sensor M18, Metal, PNP, 2 m cable
Telemecanique
Telemecanique ZCKD239 Operating Head for ZCK Limit Switches
Telemecanique
Telemecanique XMLP016BC21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, DIN connector
Telemecanique
Telemecanique XMLP250BD21FQ Pressure Transmitter, 0–250 bar, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique OsiSense XS8C2A4NCM12 Inductive Proximity Sensor — 40 × 40 × 70 mm block, Sn 40 mm, NPN, NO or NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XCKN2910P20 Limit Switch, Plunger, 1 NC + 1 NO, M20 entry
Telemecanique
Telemecanique XZCP0466L2 Sensor Cable, M8 female angled, 3-pin, 2 m
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XSAV12373TF?
- XSAV12373TF can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XSAV12373TF.
- What is the HS code for XSAV12373TF?
- The customs tariff (HS) code for XSAV12373TF is 8536.50.
- Who manufactures XSAV12373TF?
- XSAV12373TF is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XSAV12373TF?
- Yes — the XSAV12373TF datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XSAV12373TF?
- The minimum order quantity is 1.
- Is XSAV12373TF available?
- Yes — XSAV12373TF is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
