Telemecanique XMLP250BD21FQ Pressure Transmitter, 0–250 bar, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XMLP250BD21FQ OsiSense XMLP pressure transmitter, range 0–250 bar, 0.5–4.5 V ratiometric output, G 1/4 process connection, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XMLP250BD21FQ EAN / GTIN: 3666916022351 Sales unit: pcs Package quantity: 25 pcs Output signal: 4–20 mA Process connection: G1/4 Depth: 38.1 mm With display: No Diameter: 26 mm With manual on/off switch: No Initial setting: 0–250000 hPa End setting: 0–250000 hPa Max. operation pressure: 250000 hPa Explosion-proof: No Degree of protection (IP): IP65/IP67 Switch off pressure: 0–250 bar Rated voltage Ue at DC: 12–24 V Bursting pressure: 1000 bar Engaging pressure: 0–250 bar Electronic version: Yes End value measuring range pressure: 25000000 Pa Suitable as 2-point controller: No Suitable as limiter: No Suitable as guard: Yes Max. test pressure: 500 bar Medium temperature: -30–120 °C With hand operation: No Max. operating pressure: 250000 hPa Country of origin: Switzerland
Standards & Compliance
- HS Code
- 9026.20
Cross References
- EAN 3666916022351
- SAP 1200045390
- Code 81877500
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS8C2A4NCM12 Inductive Proximity Sensor — 40 × 40 × 70 mm block, Sn 40 mm, NPN, NO or NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XCKN2910P20 Limit Switch, Plunger, 1 NC + 1 NO, M20 entry
Telemecanique
Telemecanique XZCP0466L2 Sensor Cable, M8 female angled, 3-pin, 2 m
Telemecanique
Telemecanique OsiSense XS7D1A1PAL5 Inductive Proximity Sensor — 80 × 80 mm block, Sn 40 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique XUFZ04 Mounting Bracket with Lens for XUF Fibre-Optic Heads
Telemecanique
Telemecanique XUSZAMT4PTS Muting Arm, T-Shape, for XUSL Safety Light Curtains
Telemecanique

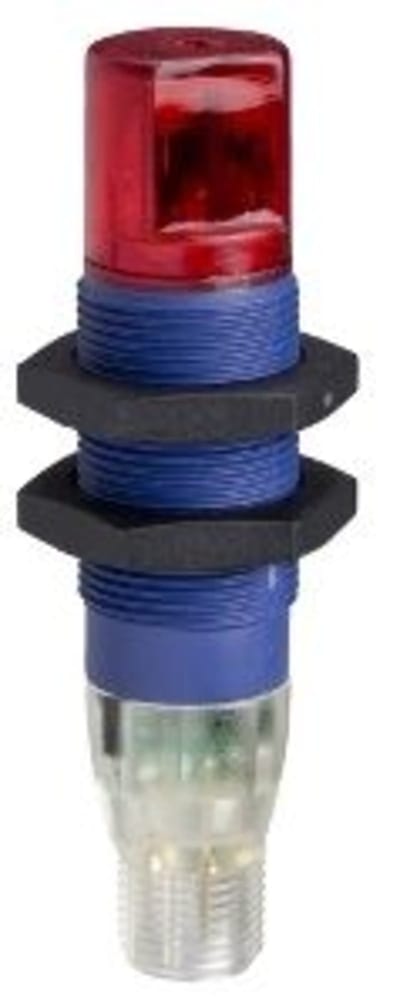

Telemecanique XUB2ANAWM12R Photoelectric Through-Beam Receiver, Plastic, NPN, NO, 90° Head, M12 connector
Telemecanique

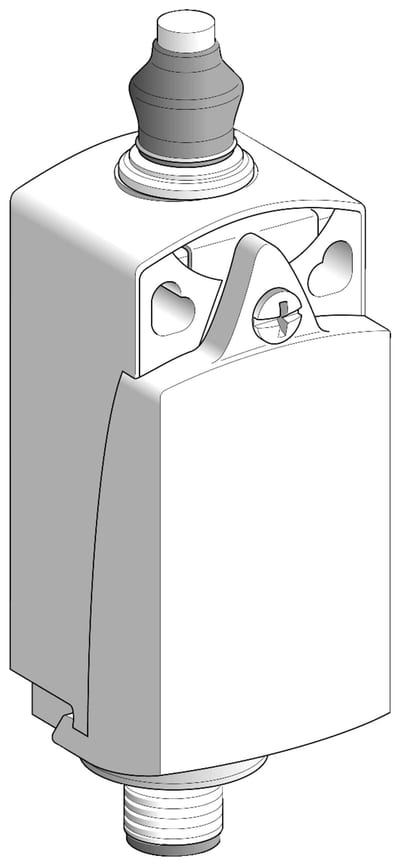

Telemecanique XCKP2111M12 Limit Switch, Metal Plunger, 1 NO + 1 NC, M12 connector
