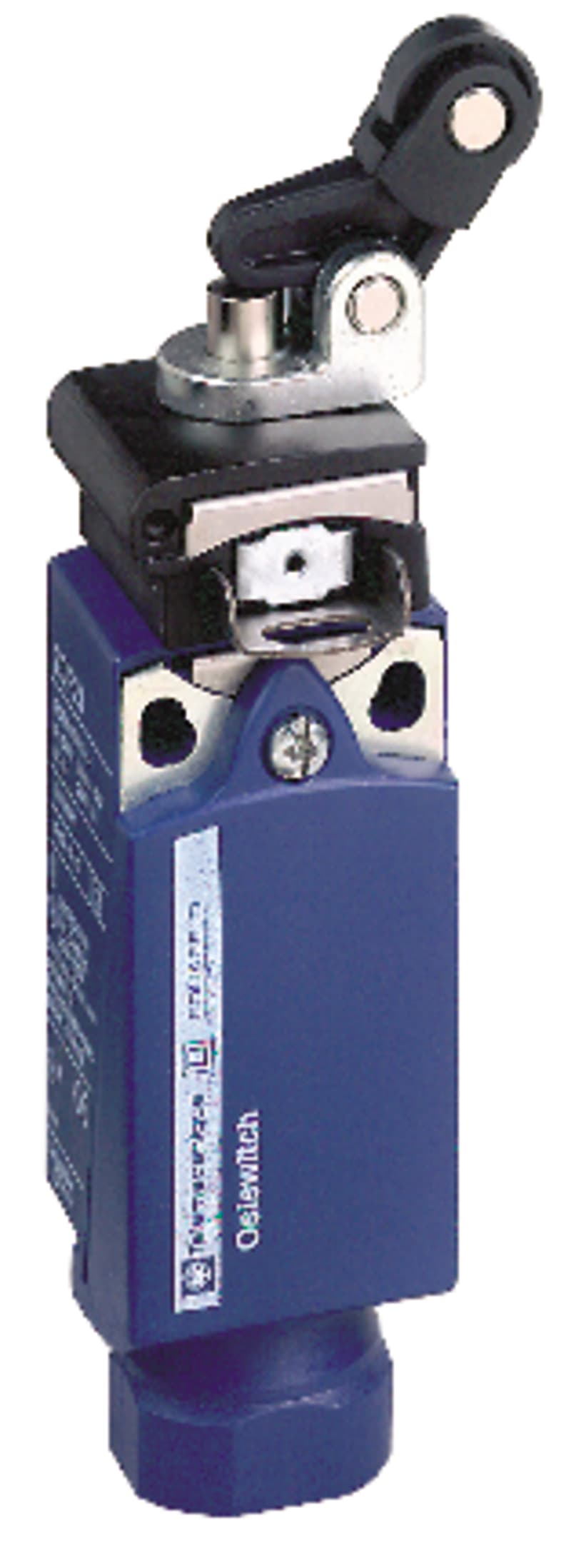

Telemecanique XCPR limit switch, plastic body, thermoplastic roller lever plunger head, 1 NC + 1 NO, snap action, manual reset, Pg 13.5 cable entry, IP67K XCPR2127G13

Telemecanique XCPR2127G13 position (limit) switch from the XC Standard range, plastic body, with a thermoplastic roller lever plunger head. 1 NC + 1 NO contact block, snap action, with positive opening on the NC contact. The head latches on operation and must be reset by hand, so a momentary trip is held until an operator clears it. One Pg 13.5 cable entry. Protection IP67K.

Manufacturer part number (MPN)

XCPR2127G13

EAN / GTIN

3666916050125

Sales unit

pcs

Package quantity

36 pcs

Cable entry

PG13

Switching function

Quick-break switch

Rated operation current Ie at AC-15, 230 V

3 A

Rated operation current Ie at DC-13, 230 V

0.27 A

Housing material

Plastic

Suitable for safety functions

No

With status indication

No

Type of interface for safety communication

None

Type of electric connection

Cable entry PG

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP67K

Forced opening

Yes

Type of control element

Plunger

Type of interface

None

Output electronic

No

Width sensor

31 mm

Height of sensor

65 mm

Length of sensor

30 mm

Switching function latching

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

France

HS Code

8536.50
