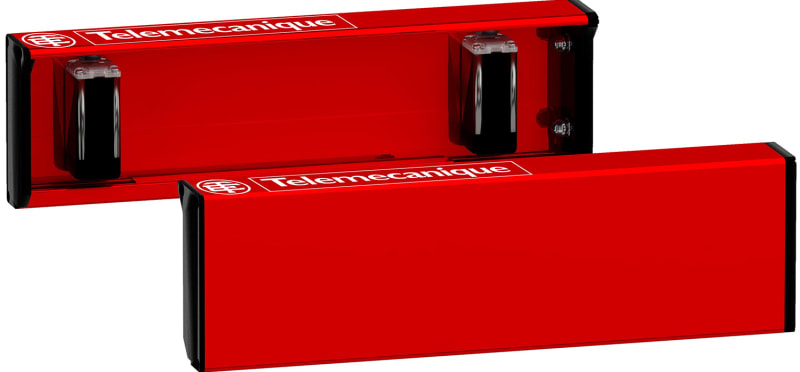

Telemecanique XUSZAML2XP Muting Arm, L-Shape, for XUSL Safety Light Curtains
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSZAML2XP muting arm, l-shape, with muting sensors, for XUSL safety light curtain installations.
Technical Specifications
- Manufacturer part number (MPN)
- XUSZAML2XP
- EAN / GTIN
- 3666916027035
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP
- Width sensor
- 50 mm
- Height of sensor
- 55 mm
- Length of sensor
- 364 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- With muting function
- Yes
- Override possible
- No
- Response time
- 100 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 3.5 m
- Switching voltage of OSSD at state "high"
- 24 V
- Voltage type
- DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 940 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916027035
- SAP 1200357481
- Code 82360720
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCKJD37H29 Limit Switch Body, Metal, Slow-break, M20 cable entry
Telemecanique
Telemecanique XZCP1670L10 Sensor Cable, M8 female, 3-pin, 10 m
Telemecanique
Telemecanique Preventa Guard Interlock Switch Plastic 120 V 2 NC + 2 NC M20
XCSLE2727332
Telemecanique
Telemecanique XMLB010A2S12 Pressure Switch, 0.7–10 bar
Telemecanique
Telemecanique OsiSense XS512B1MBL2 Inductive Proximity Sensor — M12 barrel, Sn 2 mm, 2-Wire AC/DC, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique OsiSense XS218SAPAL2 Inductive Proximity Sensor — M18 stainless barrel, Sn 12 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique OsiSense XS512B1MAU20 Inductive Proximity Sensor — M12 barrel, Sn 2 mm, 2-Wire AC/DC, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique XXB18A3PAM12 Ultrasonic Sensor (Reflex) M18, PNP, NO, Range 0.5 m, M12 connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUSZAML2XP?
- XUSZAML2XP can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUSZAML2XP.
- What is the HS code for XUSZAML2XP?
- The customs tariff (HS) code for XUSZAML2XP is 8536.50.
- Who manufactures XUSZAML2XP?
- XUSZAML2XP is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XUSZAML2XP?
- Yes — the XUSZAML2XP datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUSZAML2XP?
- The minimum order quantity is 1.
- Is XUSZAML2XP available?
- Yes — XUSZAML2XP is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
