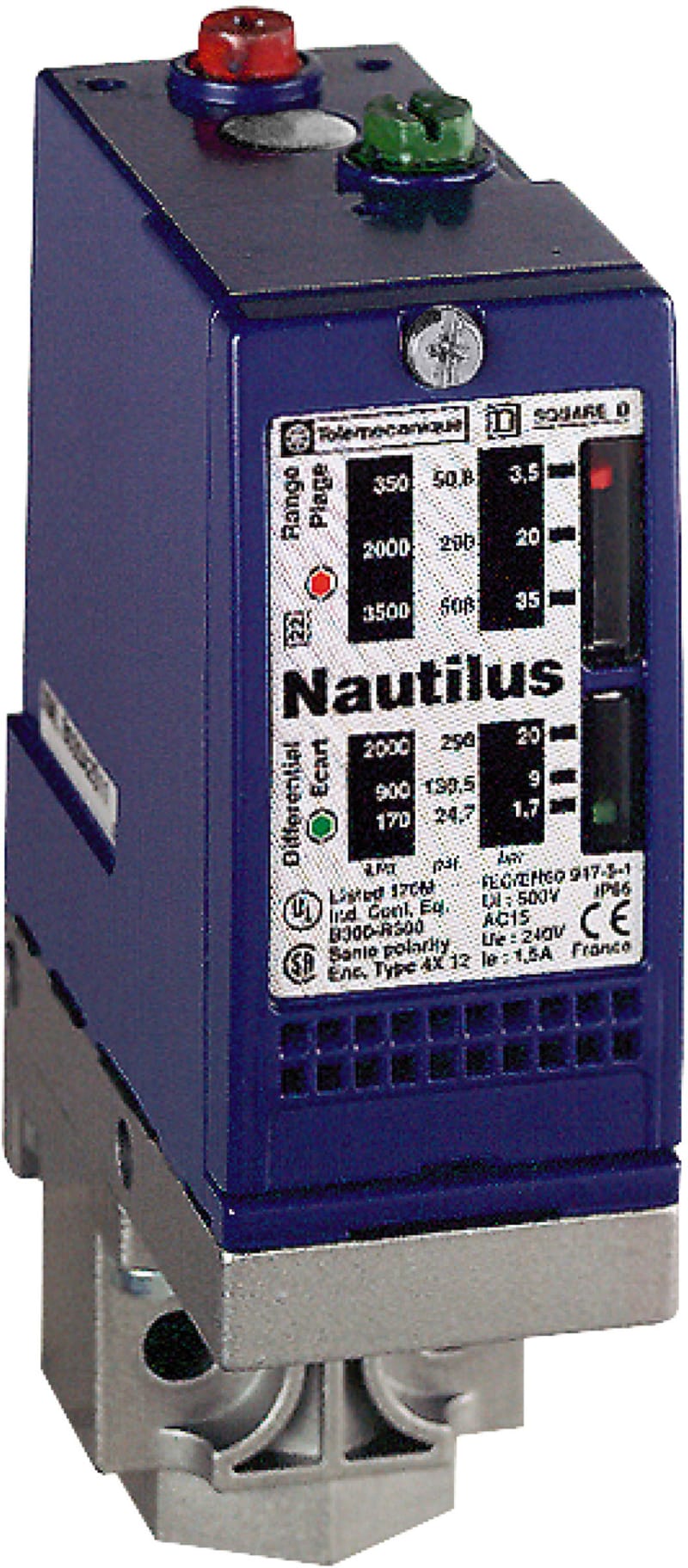

Telemecanique XMLB010A2S12 Pressure Switch, 0.7–10 bar

Telemecanique XMLB010A2S12 OsiSense XMLB electromechanical pressure switch, adjustable range 0.7–10 bar.

Manufacturer part number (MPN)

XMLB010A2S12 EAN / GTIN: 3666916025260 Sales unit: pcs Package quantity: 13 pcs Pressure: 0.7-10 bar Width: 35 mm Height: 113 mm Depth: 75 mm With display: No Number of normally open contacts as main contact: 1 With manual on/off switch: No Initial setting: 700–10000 hPa End setting: 0.7–10 hPa Max. operation pressure: 10000 hPa Type of electric connection: Screw connection Explosion-proof: No Degree of protection (IP): IP66 Initial value measuring range pressure: 13000 Pa Switch off pressure: 0.13–10 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 45 bar Engaging pressure: 0.13–10 bar Electronic version: No End value measuring range pressure: 1000000 Pa Suitable as 2-point controller: Yes Suitable as limiter: No Suitable as guard: Yes Max. test pressure: 22.5 bar Medium temperature: 0–70 °C With hand operation: No Pressure-switching differential: 0.57 bar Max. operating pressure: 10000 hPa Country of origin: Czechia

HS Code

9032.20

• EAN 3666916025260
• SAP 1000341838
• Code 8376617
