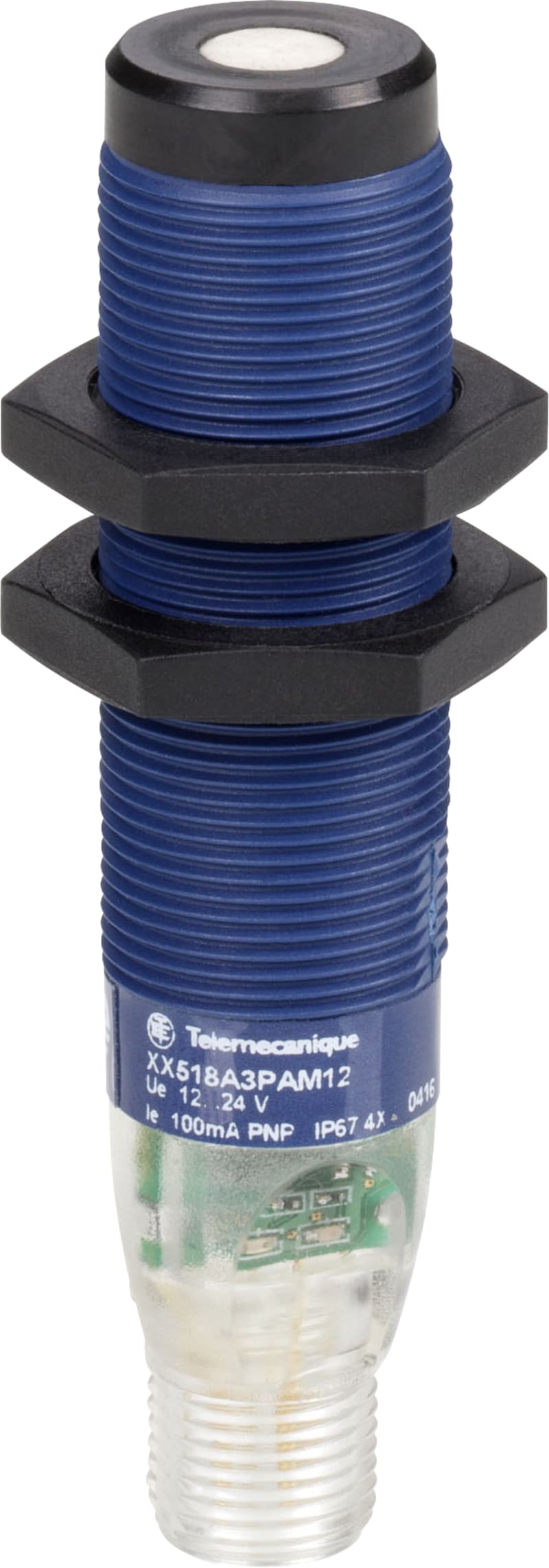

Telemecanique XXB18A3PAM12 Ultrasonic Sensor (Reflex) M18, PNP, NO, Range 0.5 m, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XXB18A3PAM12 ultrasonic sensor, reflex, M18 body, PNP NO output, range 0.5 m, sensing distance 0.5 m, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XXB18A3PAM12
- EAN / GTIN
- 3666916080276
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Diameter
- 18 mm
- Output type
- PNP
- Nominal sensing distance Sn
- 0.5 m
- Voltage type
- DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Ambient temperature
- -20–65 °C
- Switching frequency
- 40 Hz
- Type of electric connection
- Connector M12
- Type of switching output
- PNP
- Type of switch function
- Normally open contact (NO)
- Setting procedure
- Teach-In
- Explosion safety category for gas
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 40 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 1.27 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 18 mm
- Length of sensor
- 79 mm
- Adjustable distance
- 0–508 mm
- Measuring range length
- 0–508 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 9031.80
Cross References
- EAN 3666916080276
- SAP 1000707781
- Code 8205013
Product Documentation
